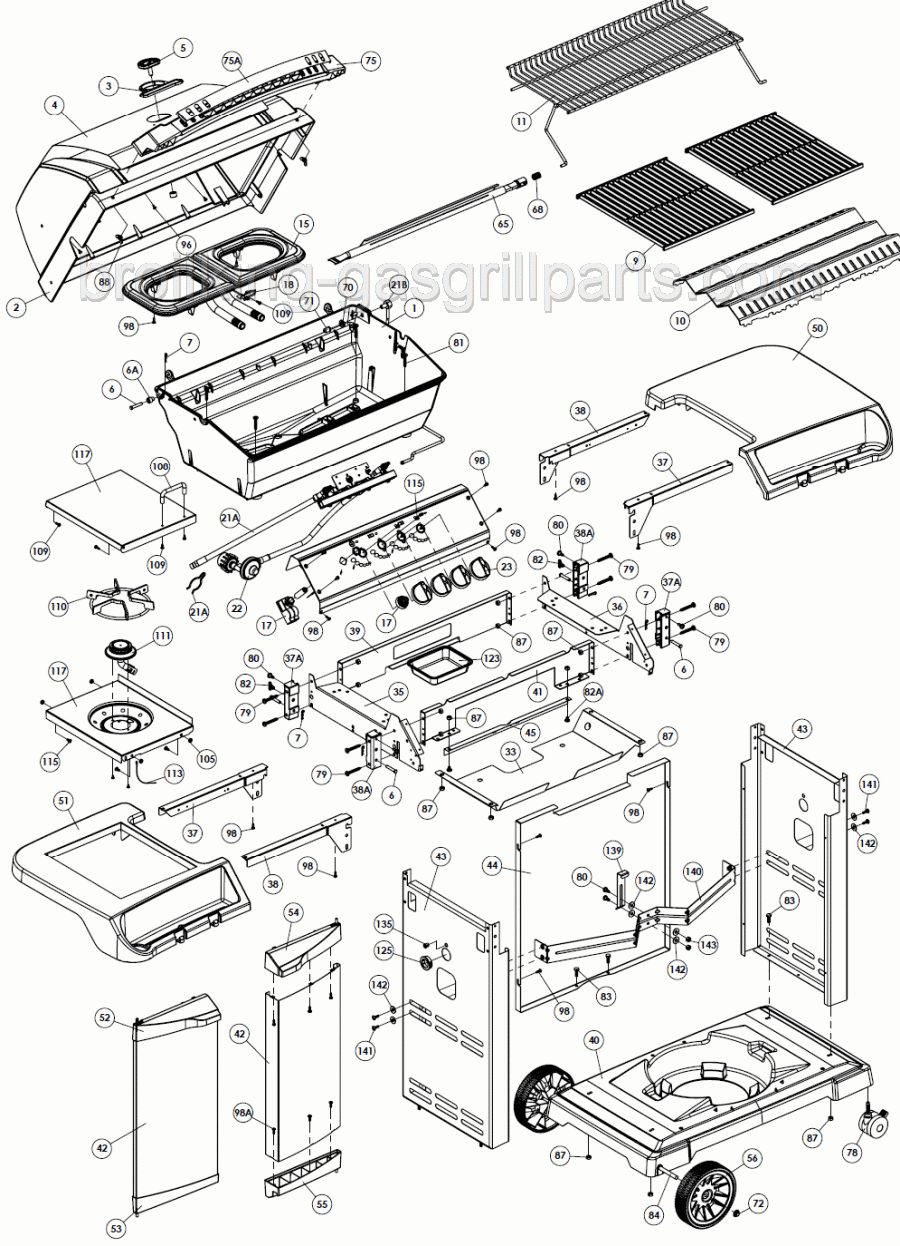

Grill model: 9959-64

3

10081-BK630 NAMEPLATE HI BROIL KING BLACK ZINC
Temporarily out of stock. Orders for this part will ship late May.

Note: Part 10081-BK630 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10081-BK603

MORE...

5

10571-6 Genuine OEM Heat indicator. About 2 3/8" wide and 2" high. The threaded stem is about 5 /16" diameter and 1 1/8" long.

Note: Part 10571-6 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:31935-5
• OMC:571-C500

MORE...

7

S21233 Hinge pin clip.

Note: Part S21233 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:S21232

MORE...

9

38170121 Genuine OEM cast iron cooking grid, single panel.

• Sold individually.
• Number required varies.
• Porcelain treated matte finish. MORE...

10

10222-T425 Genuine OEM stainless steel Flav-R-Wave heat plate. Also replaces porcelain-steel lava rock/briquette grate part# 10222-T424, which has been discontinued by the manufacturer.

Note: Part 10222-T425 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10222-T424

MORE...

11

10225-E390 Genuine OEM chrome steel warming rack. Also, the same as part number 10225-E391, the porcelain enameled warming rack. MORE...

15

S10017 Genuine OEM stainless steel burner and venturi assembly. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled. MORE...

17

10342-245 Genuine OEM electronic push-button 2-spade igniter.

• Uses AAA battery (not included)
• .Requires 3/4" mounting hole
• Also replaces part# 10342-242 and 10342-249

Note: Part 10342-245 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10342-242

MORE...

18

S15500 Genuine OEM collector box and electrode assembly. Includes

• burner mounted collector box (clip on)
• ceramic electrode and 18" wire with round connector and protective sleeve. MORE...

21A

S13467-091 LP side burner hose no longer available separately. For safety reasons, now sold only as entire valve assembly. Please verify your model number per the certification tag located on your gas grill. You can contact the manufacturer directly or email us for more information. MORE...

21A

Y-11230 Cotter pin MORE...

22

80012 24" LP hose and regulator with QCC-1 connection.

• For use on "new style" QCC-1 tanks.
• Consists of hose part# 01000 and regulator part# 00920.
• Hose end with SAE 3/8" female flare fitting connects to grill. MORE...

?

HR-4B Type 1 LP Regulator with 22" Pressure Hose and 3/8" Female Flare Fitting.FITS: Up to 60,000 BTUs MORE...

23

10472-K431 Control knob large. Black with stainless steel BA strip. MORE...

37

10184-E461 SHELF SUPPORT LH BLK MORE...

51

10711-E563 SHELF SB EZ-BILT W/O BRACKET MORE...

52

10184-E78A Genuine OEM End Cap, door. Left hand side, with magnet.
Temporarily out of stock. Orders for this part will ship late May.

Note: Part 10184-E78A is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10184-E78

MORE...

53

10184-E76 END CAP DOOR BOTTOM LEFT A MORE...

54

10184-E79A Genuine OEM End Cap, door. RIght hand side, with magnet.

Note: Part 10184-E79A is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10184-E79

MORE...

55

10184-E77 END CAP DOOR BOTTOM RIGHT A MORE...

56

10892-7G Genuine OEM 7" cart wheel with 3/8" axel hole. Mini hub cap is # 00400251, sold separately.

Note: Part 10892-7G is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10892-07
• OMC:10892-17
• OMC:10892-7
• OMC:10892-70

MORE...

72

S21420 Push nut 3/8 MORE...

78

10892-15 Genuine OEM caster wheel; approximately 2 3/8" diameter.
Temporarily out of stock. Orders for this part will ship late May.

Note: Part 10892-15 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10892-13

MORE...

104

Y-12835 SCREW-PHCP 6-32X1/4 TY-F JS500 MORE...

108

PB20-60 S/B LID HANDLE WAGON ENCLOSER* MORE...

111

10390-E10 Genuine OEM Side Burner. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow).
Temporarily out of stock. Orders for this part will ship late May.

Note: Part 10390-E10 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10390-E10D
• OMC:10390-E10E

MORE...

113

10342-T14 Genuine OEM 21" wire for side burner or other applications. One female spade connector, one female round connector. MORE...

123

S15115 Genuine OEM disposable grease pans. Package of 10. Each measures 4.75"x6"x1". MORE...

142

S21255 Washer MORE...

?

04160152 COOKING GRID 390 PORCELAIN, GLOSSY COATED. SOLD INDIVIDUALLY.

• Sold individually
• Number required varies, check your grill

Note: Part 04160152 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:04160151

MORE...

?

10225-E391 Genuine OEM porcelain enameled steel warming rack; also, the same as part number 10225-E391 the chrome version. MORE...

?

10225-E404 Genuine OEM Broil King stainless steel cooking grid. MORE...

?

10225-T436 Genuine OEM reversible heavy cast iron cooking grid SOLD INDIVIDUALLY.

• Sold individually
• Number required varies, check your grill
• Porcelain treated, flat matte finish
• Pointed side is designed for perfect sear marks
• Grooved side captures juices for continuous basting

Note: See part 10225-E404 for a stainless steel version of this grid. MORE...

?

51901 Porcelain steel cooking grid. Porcelain enameled, glossy finish. Sold individually.
NOTE: This is an Aftermarket part, NOT an original factory part. MORE...
