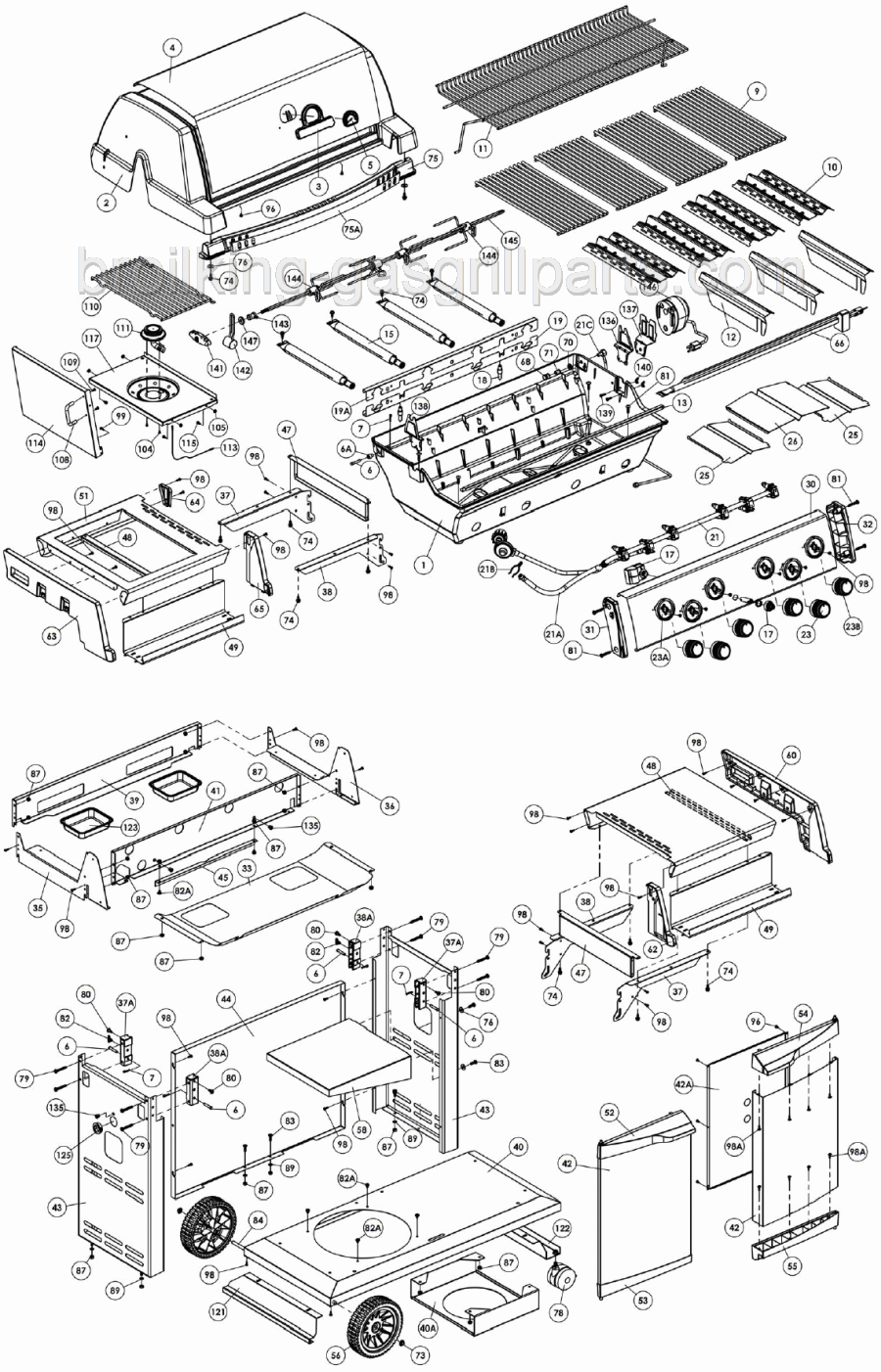

Grill model: 9887-17 Sovereign XLS20

3

10081-BK630 NAMEPLATE HI BROIL KING BLACK ZINC
Temporarily out of stock. Orders for this part will ship late May.

Note: Part 10081-BK630 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10081-BK603

MORE...

5

10571-6 Genuine OEM Heat indicator. About 2 3/8" wide and 2" high. The threaded stem is about 5 /16" diameter and 1 1/8" long.

Note: Part 10571-6 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:31935-5
• OMC:571-C500

MORE...

7

S21233 Hinge pin clip.

Note: Part S21233 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:S21232

MORE...

9

S12033S Genuine OEM premium stainless steel cooking grid. SOLD INDIVIDUALLY, used in sets of three or four. MORE...

10

10222-E400 Genuine OEM stainless steel Flav-R-Wave.

Note: Part 10222-E400 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10222-E405

MORE...

12

10222-E401 Genuine OEM stainless steel divider. MORE...

15

10390-E20 Genuine OEM stainless steel Dual-Tube burner. Use air shutter to control flow of air for LP gas, less air, and for natural gas, more air. NOTE: Manufacturer changed back mounting to a 90 degree bend.

Note: Part 10390-E20 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10390-E20D
• OMC:10390-E20E
• OMC:10390-E20LP
• OMC:10390-E20M
• OMC:10390-E20ME
• OMC:10390-E20NG
• OMC:10390-E20NGE

MORE...

17

10342-245 Genuine OEM electronic push-button 2-spade igniter.

• Uses AAA battery (not included)
• .Requires 3/4" mounting hole
• Also replaces part# 10342-242 and 10342-249

Note: Part 10342-245 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10342-242

MORE...

18

10342-E13 Genuine OEM electrode with 14" connector wire that has a spade female end; use with AA or AAA battery powered ignitors.
Temporarily out of stock. Orders for this part will ship late May. MORE...

21

10444-E61 CONTROL ASSEMBLY 60BTU 4V NG
SPECIAL ORDER PART. This part is not in stock. Orders for this part may not ship for 4 to 10 weeks, depending on availablity and ship times from the manufacturer. MORE...

22

ASCPL-1 Five piece 3/8" natural gas quick disconnect set includes:

• Part ASCPL-2 12ft vinyl 3/8" ID Sturgis hose (3/8" inside diameter outside diameter about 1/2") with solid brass fittings
• Part ASCPL-3 Sturgis brand 3/8" quick connect brass coupler
• Hansen & Sturgis dust cover
• plastic dust plug
• Plastic 3/8 MPT Snap Tite
• Suitable up to approximately 60,000 BTU. MORE...

23

22001-768 Genuine OEM large control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 2 1/4"
• Socket diameter: 5/16"
• Knob shaft: 1/2" MORE...

23A

10472-E38 CONTROL KNOB - BEZEL BLK MORE...

47

10184-E691 ALIGNMENT, BRACKET BLACK MORE...

52

10184-E88A END CAP DOOR TOP LEFT +

Note: Part 10184-E88A is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10184-E88

MORE...

53

10184-E86 END CAP DOOR BOTTOM LEFT MORE...

54

10184-E89A END CAP DOOR TOP RIGHT +

Note: Part 10184-E89A is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10184-E89

MORE...

55

10184-E87 END CAP DOOR BOTTOM RIGHT MORE...

56

10892-8NG Genuine OEM 8" cart wheel with a 3/8" axel hole. Also replaces part# 10892-8, and 10892-8N which have been discontinued. Is a solid rubber wheel with a plastic hub, and it has a grey sidewall stripe instead of the white found on 10892-8N.

Note: Part 10892-8NG is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10892-8
• OMC:10892-8N
• OMC:SP17-22SC

MORE...

60

10711-E47 END CAP SIDE SHELF RHS MORE...

73

S21420 Push nut 3/8 MORE...

75A

10184-E713A HANDLE W/STRAP SOVEREIGN XL -- 600

Note: Part 10184-E713A is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10184-E713

MORE...

76

S21255 Washer MORE...

78

10892-22 Genuine OEM caster wheel 3/8"
Temporarily out of stock. Orders for this part will ship late May. MORE...

121

10184-E611 CASTOR BRACKET
SPECIAL ORDER PART. This part is not in stock. Orders for this part may not ship for 4 to 10 weeks, depending on availablity and ship times from the manufacturer. MORE...

122

10184-E582 CASTOR BRACKET W/RIVNUTS +
SPECIAL ORDER PART. This part is not in stock. Orders for this part may not ship for 4 to 10 weeks, depending on availablity and ship times from the manufacturer. MORE...

123

S15115 Genuine OEM disposable grease pans. Package of 10. Each measures 4.75"x6"x1". MORE...

136

10184-E33 ROTISSERIE SHIELD BRACKET FOR RIGHT SIDE WITH TWO MOUNTING HOLES. (Also, a replacement for 10184-E43.)

Note: Part 10184-E33 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10184-E43

MORE...

137

10184-E42 ROTISSERIE MOTOR BRACKET. MORE...

138

10184-E44 ROTISSERIE SHIELD BRACKET FOR LEFT SIDE WITH ONE MOUTNING HOLE. MORE...
