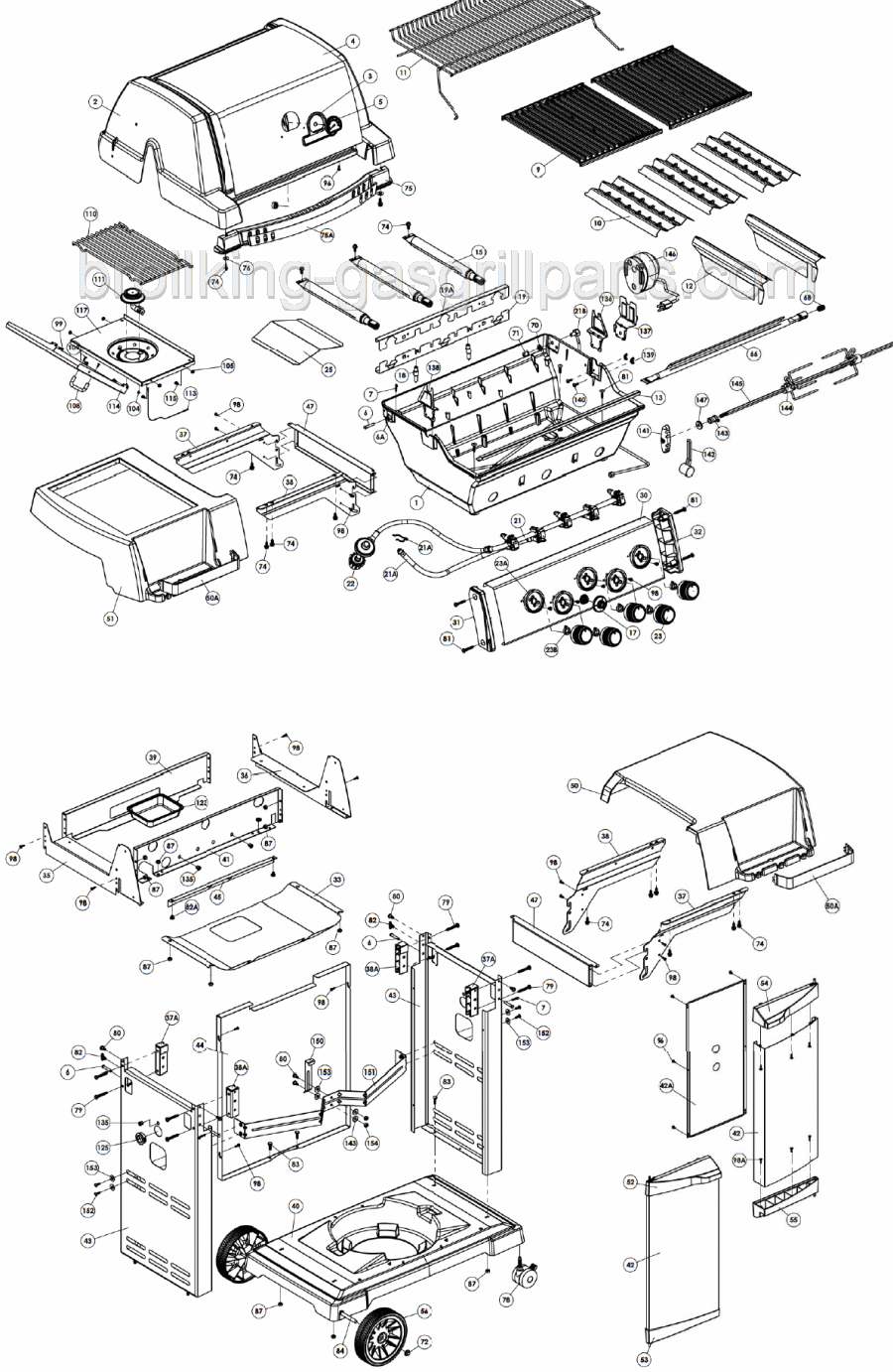

Grill model: 9869-77C Signet 70B

0

67487 Broil King 58" Select grill cover 67487. Broil King Select Series covers are crafted from durable and weather resistant PVC / 500 x 300 denier polyester lining. These durable covers feature:

• Hook-and-loop tabs that secure the cover around the grill
• Polyester handles for easy removal
• Hanging loops for convenient storage
• The Broil King brand logo on the front MORE...

0

68487 Broil King 58" premium grill cover 68487. Broil King premium covers are crafted of durable water resistant PVC with heavy woven 900D polyester backing.

Exact fit for models:

• Baron 440, 490 Series grills
• Crown 10, 90 Series grills, post model
• Signet 70, 90 Series grills
• Sovereign 20, 40, 70, and 90 Series grills MORE...

3

10081-BK630 NAMEPLATE HI BROIL KING BLACK ZINC
Temporarily out of stock. Orders for this part will ship late May.

Note: Part 10081-BK630 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10081-BK603

MORE...

5

10571-6 Genuine OEM Heat indicator. About 2 3/8" wide and 2" high. The threaded stem is about 5 /16" diameter and 1 1/8" long.

Note: Part 10571-6 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:31935-5
• OMC:571-C500

MORE...

7

S21233 Hinge pin clip.

Note: Part S21233 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:S21232

MORE...

9

38170121 Genuine OEM cast iron cooking grid, single panel.

• Sold individually.
• Number required varies.
• Porcelain treated matte finish. MORE...

10

10222-E400 Genuine OEM stainless steel Flav-R-Wave.

Note: Part 10222-E400 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10222-E405

MORE...

11

10225-E401 Genuine OEM warming rack. Longest length is 27 5/8" other longest portion is 23 5/8". Front to back cooking area is 11".
SPECIAL ORDER PART. This part is not in stock. Orders for this part may not ship for 4 to 10 weeks, depending on availablity and ship times from the manufacturer. MORE...

12

10222-E401 Genuine OEM stainless steel divider. MORE...

15

10390-E20 Genuine OEM stainless steel Dual-Tube burner. Use air shutter to control flow of air for LP gas, less air, and for natural gas, more air. NOTE: Manufacturer changed back mounting to a 90 degree bend.

Note: Part 10390-E20 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10390-E20D
• OMC:10390-E20E
• OMC:10390-E20LP
• OMC:10390-E20M
• OMC:10390-E20ME
• OMC:10390-E20NG
• OMC:10390-E20NGE

MORE...

17

10342-245 Genuine OEM electronic push-button 2-spade igniter.

• Uses AAA battery (not included)
• .Requires 3/4" mounting hole
• Also replaces part# 10342-242 and 10342-249

Note: Part 10342-245 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10342-242

MORE...

18

10342-E12 Genuine OEM electrode with 11" connector wire that has a flat/spade female end; use with AA or AAA battery powered ignitors.
Temporarily out of stock. Orders for this part will ship late May. MORE...

19

10342-E400A Genuine OEM collector box, complete. Replaces parts 10342-E400 and 10342-E401, which have been discontinued as separate parts.

Note: Part 10342-E400A is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10342-E400
• OMC:10342-E401

MORE...

21

10444-E459 CONTROL ASSY 50BTU 4V NG *
SPECIAL ORDER PART. This part is not in stock. Orders for this part may not ship for 4 to 10 weeks, depending on availablity and ship times from the manufacturer.

Note: Part 10444-E459 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10444-E45

MORE...

21B

10110-40 Gas tube to rear burner assembly. Connects control valve assembly to rear rotisserie burner. 400 REVA.
SPECIAL ORDER PART. This part is not in stock. Orders for this part may not ship for 4 to 10 weeks, depending on availablity and ship times from the manufacturer. MORE...

22

ASCPL-1 Five piece 3/8" natural gas quick disconnect set includes:

• Part ASCPL-2 12ft vinyl 3/8" ID Sturgis hose (3/8" inside diameter outside diameter about 1/2") with solid brass fittings
• Part ASCPL-3 Sturgis brand 3/8" quick connect brass coupler
• Hansen & Sturgis dust cover
• plastic dust plug
• Plastic 3/8 MPT Snap Tite
• Suitable up to approximately 60,000 BTU. MORE...

23

22001-768 Genuine OEM large control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 2 1/4"
• Socket diameter: 5/16"
• Knob shaft: 1/2" MORE...

23A

10472-E38 CONTROL KNOB - BEZEL BLK MORE...

47

10184-E691 ALIGNMENT, BRACKET BLACK MORE...

52

10184-E78A Genuine OEM End Cap, door. Left hand side, with magnet.
Temporarily out of stock. Orders for this part will ship late May.

Note: Part 10184-E78A is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10184-E78

MORE...

53

10184-E76 END CAP DOOR BOTTOM LEFT A MORE...

54

10184-E79A Genuine OEM End Cap, door. RIght hand side, with magnet.

Note: Part 10184-E79A is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10184-E79

MORE...

55

10184-E77 END CAP DOOR BOTTOM RIGHT A MORE...

56

10892-7G Genuine OEM 7" cart wheel with 3/8" axel hole. Mini hub cap is # 00400251, sold separately.

Note: Part 10892-7G is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10892-07
• OMC:10892-17
• OMC:10892-7
• OMC:10892-70

MORE...

66

S13005A Genuine OEM stainless steel rotisserie burner assembly.

Includes:
• 26 3/16" SS rotisserie burner with deflector (part# S13005)
• Burner-mounted electrode, gas collector box, and 45" wire
• Completely assembled

Note: Part S13005A is the factory authorized replacement for the following parts, which are no longer available:

• OMC:S13003
• OMC:S13005
• OMC:S13008

MORE...

68

S21362 REAR BURNER SPRING MORE...

73

S21420 Push nut 3/8 MORE...

76

S21255 Washer MORE...

78

10892-15 Genuine OEM caster wheel; approximately 2 3/8" diameter.
Temporarily out of stock. Orders for this part will ship late May.

Note: Part 10892-15 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10892-13

MORE...

123

S15115 Genuine OEM disposable grease pans. Package of 10. Each measures 4.75"x6"x1". MORE...

136

10184-E33 ROTISSERIE SHIELD BRACKET FOR RIGHT SIDE WITH TWO MOUNTING HOLES. (Also, a replacement for 10184-E43.)

Note: Part 10184-E33 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10184-E43

MORE...

137

10184-E42 ROTISSERIE MOTOR BRACKET. MORE...

138

10184-E44 ROTISSERIE SHIELD BRACKET FOR LEFT SIDE WITH ONE MOUTNING HOLE. MORE...

?

04160152 COOKING GRID 390 PORCELAIN, GLOSSY COATED. SOLD INDIVIDUALLY.

• Sold individually
• Number required varies, check your grill

Note: Part 04160152 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:04160151

MORE...

?

10225-E404 Genuine OEM Broil King stainless steel cooking grid. MORE...

?

10225-T436 Genuine OEM reversible heavy cast iron cooking grid SOLD INDIVIDUALLY.

• Sold individually
• Number required varies, check your grill
• Porcelain treated, flat matte finish
• Pointed side is designed for perfect sear marks
• Grooved side captures juices for continuous basting

Note: See part 10225-E404 for a stainless steel version of this grid. MORE...

?

51901 Porcelain steel cooking grid. Porcelain enameled, glossy finish. Sold individually.
NOTE: This is an Aftermarket part, NOT an original factory part. MORE...
