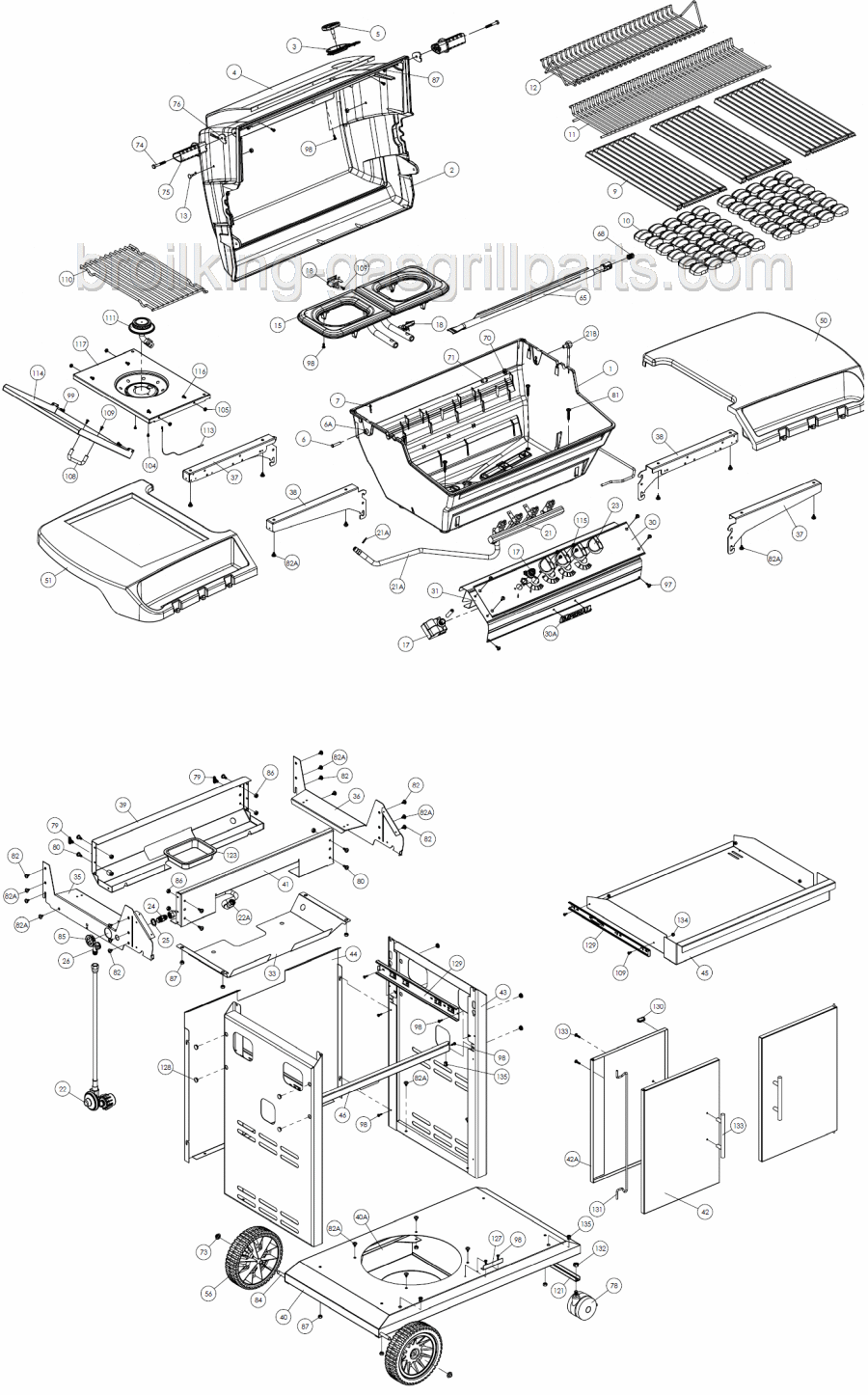

Click image or part# below
for complete description and photos. |
|
| 3 |
 |
10081-BK630 NAMEPLATE HI BROIL KING BLACK ZINC - more info and photos... |
$16.25 |
|
|
|
| 5 |
 |
10571-6 Genuine OEM Heat indicator. About 2 3/8" wide and 2" high. The threaded stem is about 5 /16" diameter and 1 1/8" long. - more info and photos... |
$17.76 |
|
|
|
| 7 |
 |
S21233 Hinge pin clip. - more info and photos... |
$1.08 |
|
|
|
| 9 |
 |
10225-T626 Genuine OEM reversible heavy cast iron cooking grids SOLD INDIVIDUALLY.*Sold individually*Number required varies, check - more info and photos... |
$44.60 |
|
|
|
| 10 |
 |
10222-T626 Genuine OEM cast iron Flav-R-Cast. Sold individually, two (2) required. - more info and photos... |
$58.44 |
|
|
|
| 11 |
 |
10225-T628 Genuine OEM warming rack - more info and photos... |
$35.14 |
|
|
|
| 15 |
 |
10390-T501 Genuine OEM stainless steel Infinity burner assembly. This burner assembly does not include the electrodes. Includes:*O - more info and photos... |
$80.44 |
|
|
|
| 17 |
 |
10342-246 Genuine OEM electronic push-button 3-spade igniter.*Uses AAA battery (not included)*.Requires 3/4" mounting hole - more info and photos... |
$18.48 |
|
|
|
| 18 |
 |
10342-T301 Genuine OEM collector box and electrode assembly. Includes:*burner mounted box with mounting screw* ceramic electrode a - more info and photos... |
$10.95 |
|
|
|
| 21 |
 |
10442-R67 Genuine OEM Control assembly, NG 4V - more info and photos... |
$102.55 |
|
|
|
| 21A |
|
S13467-132 NG side burner hose no longer available separately. - more info... |
$24.42 |
|
|
|
| 21A |
 |
Y-11230 Cotter pin - more info and photos... |
$1.08 |
|
|
|
| 22 |
 |
10111-K45 Genuine OEM NG gas hose. - more info and photos... |
$88.64 |
|
|
|
| 22A |
|
10111-27 FLEX HOSE SS FINAL - more info... |
$15.88 |
|
|
|
| 26 |
|
10153-47 HOSE CONNECT 90 DEG ELBOW -- BRASS A - more info...
SPECIAL ORDER PART. This part is not in stock. Orders for this part may not ship for 4 to 10 weeks, depending on availablity and ship times from the manufacturer. |
$7.54 |
|
|
|
| 37 |
 |
10184-R581 Shelf support, left. - more info and photos... |
$10.35 |
|
|
|
| 38 |
 |
10184-R591 SHELF SUPPORT RH BLK(18") - more info and photos... |
$10.35 |
|
|
|
| 56 |
 |
10892-8NG Genuine OEM 8" cart wheel with a 3/8" axel hole. Also replaces part# 10892-8, and 10892-8N which have been discontinued - more info and photos... |
$22.88 |
|
|
|
| 65 |
 |
S13005A Genuine OEM stainless steel rotisserie burner assembly. Includes:*26 3/16" SS rotisserie burner with deflector (part# - more info and photos... |
$34.40 |
|
|
|
| 68 |
 |
S21362 REAR BURNER SPRING - more info and photos... |
$1.08 |
|
|
|
| 73 |
 |
S21420 Push nut 3/8 - more info and photos... |
$2.23 |
|
|
|
| 74 |
 |
Y-6616 Bolt - more info and photos... |
$1.08 |
|
|
|
| 76 |
 |
10239-7 Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material. - more info and photos... |
$1.95 |
|
|
|
| 78 |
 |
10892-22 Genuine OEM caster wheel 3/8" - more info and photos... |
$7.78 |
|
|
|
| 84 |
|
S15172 AXLE ZINC PLATED 21 43/64x.375 - more info...
SPECIAL ORDER PART. This part is not in stock. Orders for this part may not ship for 4 to 10 weeks, depending on availablity and ship times from the manufacturer. |
$6.44 |
|
|
|
| 104 |
|
Y-12835 SCREW-PHCP 6-32X1/4 TY-F JS500 - more info... |
$0.70 |
|
|
|
| 108 |
 |
PB20-60 S/B LID HANDLE WAGON ENCLOSER* - more info and photos...
TEMPORARILY OUT OF STOCK. Orders for this part will ship early Nov. |
$1.95 |
|
|
|
| 110 |
 |
10225-T10 Genuine OEM side burner grid - more info and photos... |
$25.62 |
|
|
|
| 111 |
 |
10390-E10 Genuine OEM Side Burner. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow). - more info and photos... |
$14.96 |
|
|
|
| 113 |
 |
10342-T14 Genuine OEM 21" wire for side burner or other applications. One female spade connector, one female round connector. - more info and photos... |
$4.32 |
|
|
|
| 114 |
 |
10393-K40 Genuine OEM Cover, side burner. - more info and photos... |
$18.73 |
|
|
|
| 123 |
 |
S15115 Genuine OEM disposable grease pans. Package of 10. Each measures 4.75"x6"x1". - more info and photos... |
$15.13 |
|
|
|
| 133 |
|
PB20-62 S/B LID HANDLE SS - more info...
SPECIAL ORDER PART. This part is not in stock. Orders for this part may not ship for 4 to 10 weeks, depending on availablity and ship times from the manufacturer. |
$8.99 |
|
|
