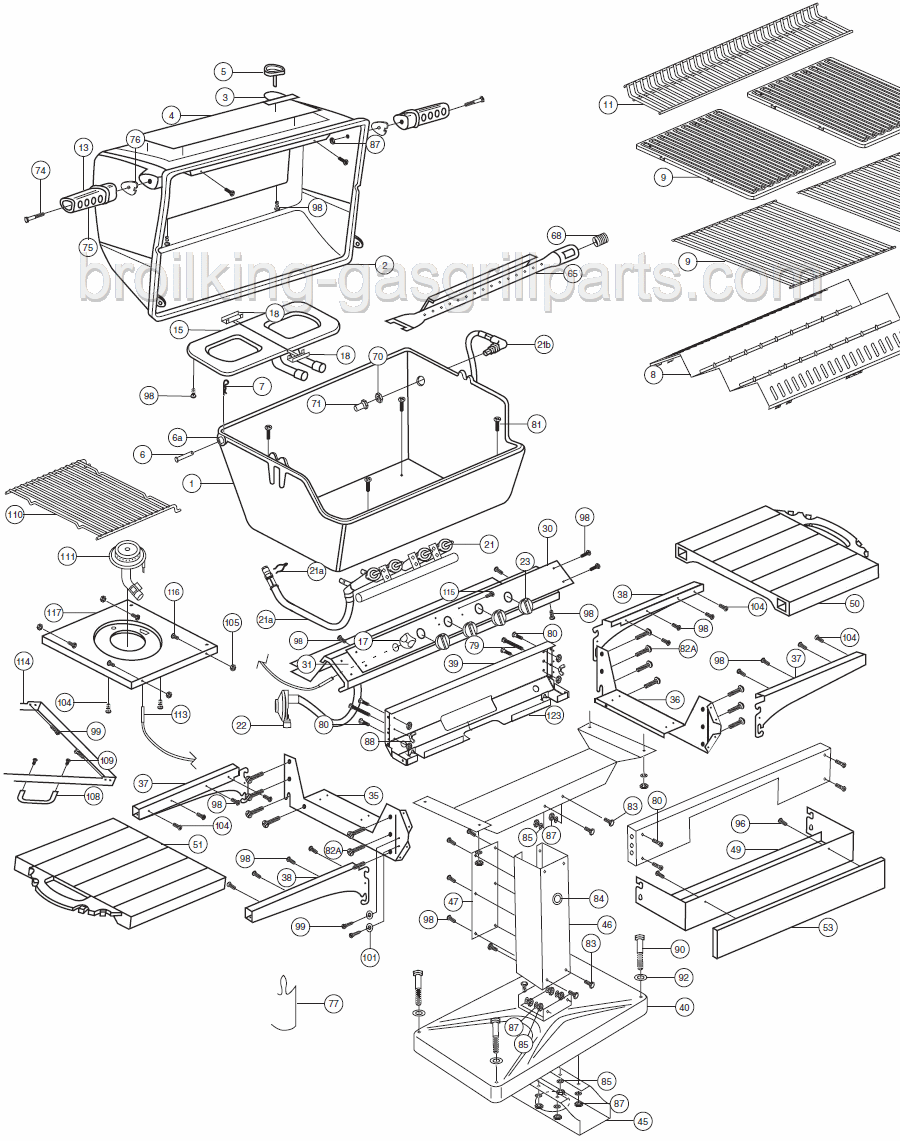

Grill model: 955-98

3

10081-BK630 NAMEPLATE HI BROIL KING BLACK ZINC
Temporarily out of stock. Orders for this part will ship late May.

Note: Part 10081-BK630 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10081-BK603

MORE...

5

10571-6 Genuine OEM Heat indicator. About 2 3/8" wide and 2" high. The threaded stem is about 5 /16" diameter and 1 1/8" long.

Note: Part 10571-6 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:31935-5
• OMC:571-C500

MORE...

7

S21233 Hinge pin clip.

Note: Part S21233 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:S21232

MORE...

8

10222-T425 Genuine OEM stainless steel Flav-R-Wave heat plate. Also replaces porcelain-steel lava rock/briquette grate part# 10222-T424, which has been discontinued by the manufacturer.

Note: Part 10222-T425 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10222-T424

MORE...

15

10390-T501 Genuine OEM stainless steel Infinity burner assembly. This burner assembly does not include the electrodes. Includes:

• One stainless steel Infinity burner
• Twin venturi with spider exclusion screens

Note: Part 10390-T501 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10390-T501D
• OMC:10390-T501S

MORE...

17

10342-22 Genuine OEM push button igniter. For two-wire grills with second wire for side burner. Wires not included. MORE...

18

10342-T301 Genuine OEM collector box and electrode assembly. Includes:

• burner mounted box with mounting screw
• ceramic electrode and 17" wire with round connector and protective sleeve
• Use with burners 10390-T401 (14102) and 10390-T501 (14212) MORE...

21

10442-R57 CONTROL ASSY 50/10/15M-4V-NG
SPECIAL ORDER PART. This part is not in stock. Orders for this part may not ship for 4 to 10 weeks, depending on availablity and ship times from the manufacturer. MORE...

21A

S13467-132 NG side burner hose no longer available separately.
Now sold only as entire valve assembly. Please verify your model number per the certification tag on your gas grill. MORE...

21A

Y-11230 Cotter pin MORE...

23

10472-K431 Control knob large. Black with stainless steel BA strip. MORE...

47

10958-K541 Genuine OEM flat black post cover. 5/16in side-to-side, 18 7/8in tall. MORE...

57

10156-K55 HEAT SHIELD 950 2600 MORE...

68

S21362 REAR BURNER SPRING MORE...

74

Y-6616 Bolt hex head 1 1/2" length MORE...

76

10239-7 Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Note: Part 10239-7 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10239-6

MORE...

77

S15111 Stainless steel wire grease cup holder for mini bucket #S15112 which has been discontinued and replaced with mini bucket # 4673-FC. This wire holder can also be used with tin cans for easy disposal of grease. MORE...

104

Y-12835 SCREW-PHCP 6-32X1/4 TY-F JS500 MORE...

108

PB20-60 S/B LID HANDLE WAGON ENCLOSER* MORE...

110

10225-T10 Genuine OEM side burner grid MORE...

111

10390-E10 Genuine OEM Side Burner. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow).
Temporarily out of stock. Orders for this part will ship late May.

Note: Part 10390-E10 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10390-E10D
• OMC:10390-E10E

MORE...

113

10342-T12 Genuine OEM 21" wire for side burner or other applications. Both ends are female spade connector. MORE...

114

10393-K40 Genuine OEM Cover, side burner. MORE...

?

10225-T424 Stainless Steel cooking grid. 50% T45 MORE...
