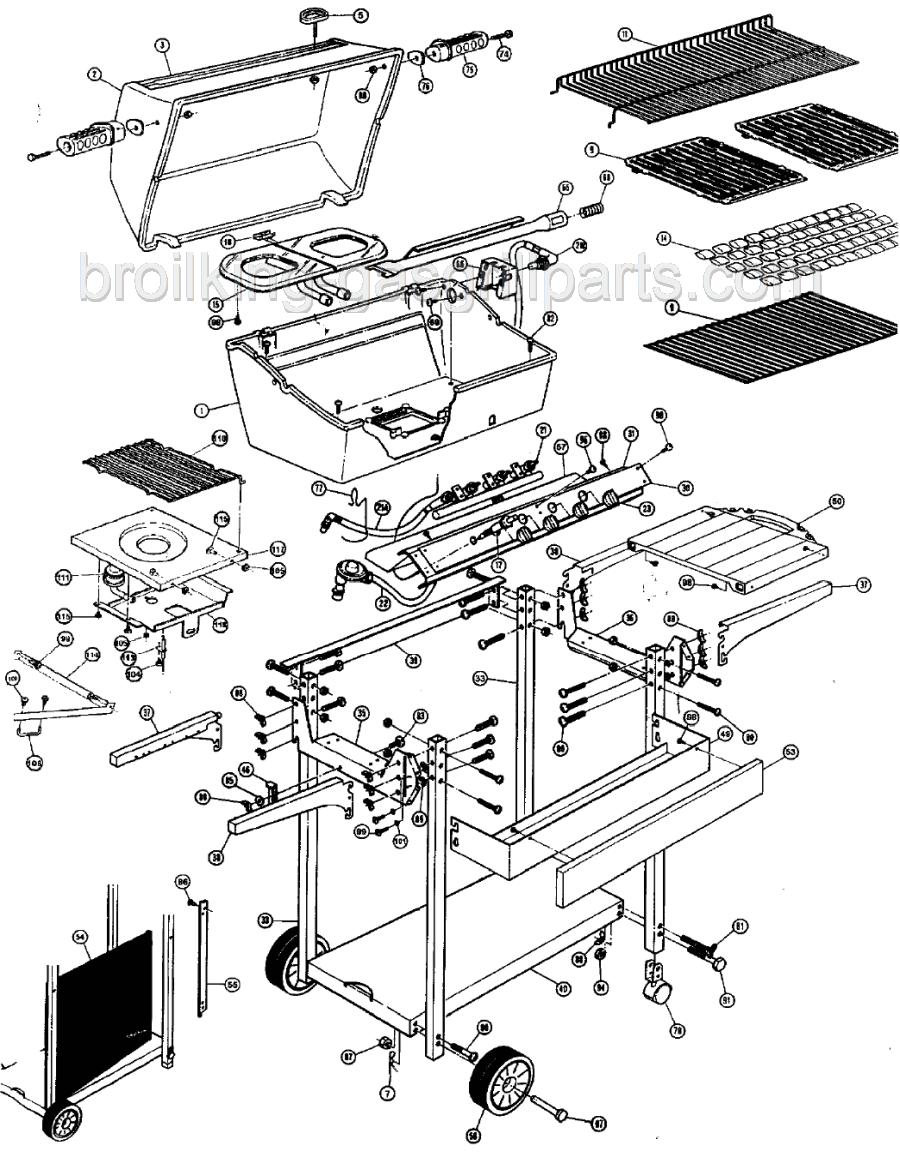

Grill model: 952-44 Regal 4

5

10571-5 Genuine OEM Heat indicator. About 1 7/8" wide and 1 7/16" high. The threaded stem is about 5/16" diameter and 1 1/8" long. MORE...

7

S21233 Hinge pin clip.

Note: Part S21233 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:S21232

MORE...

8

90401 carbon steel rock grate
NOTE: This is an Aftermarket part, NOT an original factory part. MORE...

11

10225-T427 Genuine OEM warming rack. Also replaces part# 10225-T428, which has been discontinued by the manufacturer.

Note: Part 10225-T427 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10225-T428

MORE...

14

CLA-AC0399 High quality, long lasting ceramic briquettes. 70 flat top pyramid-shaped briquettes per box. Placed 1/2" apart, 70 briquetes will cover about 437 square inches. This is an area roughly 17" x 26".

• Top quality product
• Each briquette measure 2" x 2"
• Self cleaning
• Great heat distibution, retains heat longer
• Can be used on all grills that use briquettes or lava rock
• Use a single layer (multiple layers can reduce temperatures)

NOTE: These high quality ceramic briquetes are available in 59 count, 70 count, and 90 count qantities.

• 59 briquetes covers an area apprimately 15" x 24"
• 70 briquetes covers an area apprimately 17" x 26"
• 90 briquetes covers an area apprimately 17" x 33"

MORE...

15

10390-T501 Genuine OEM stainless steel Infinity burner assembly. This burner assembly does not include the electrodes. Includes:

• One stainless steel Infinity burner
• Twin venturi with spider exclusion screens

Note: Part 10390-T501 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10390-T501D
• OMC:10390-T501S

MORE...

17

10342-22 Genuine OEM push button igniter. For two-wire grills with second wire for side burner. Wires not included. MORE...

18

10342-T301 Genuine OEM collector box and electrode assembly. Includes:

• burner mounted box with mounting screw
• ceramic electrode and 17" wire with round connector and protective sleeve
• Use with burners 10390-T401 (14102) and 10390-T501 (14212) MORE...

22

80012 24" LP hose and regulator with QCC-1 connection.

• For use on "new style" QCC-1 tanks.
• Consists of hose part# 01000 and regulator part# 00920.
• Hose end with SAE 3/8" female flare fitting connects to grill. MORE...

?

HR-4B Type 1 LP Regulator with 22" Pressure Hose and 3/8" Female Flare Fitting.FITS: Up to 60,000 BTUs MORE...

23

10472-K431 Control knob large. Black with stainless steel BA strip. MORE...

57

10156-K55 HEAT SHIELD 950 2600 MORE...

74

Y-6616 Bolt hex head 1 1/2" length MORE...

76

10239-7 Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Note: Part 10239-7 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10239-6

MORE...

77

S15111 Stainless steel wire grease cup holder for mini bucket #S15112 which has been discontinued and replaced with mini bucket # 4673-FC. This wire holder can also be used with tin cans for easy disposal of grease. MORE...

85

S21255 Washer MORE...

104

Y-12835 SCREW-PHCP 6-32X1/4 TY-F JS500 MORE...

106

PB20-60 S/B LID HANDLE WAGON ENCLOSER* MORE...

110

10225-T10 Genuine OEM side burner grid MORE...

114

10393-K40 Genuine OEM Cover, side burner. MORE...

?

10225-T424 Stainless Steel cooking grid. 50% T45 MORE...

?

45887 Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks. MORE...
