Grill model: 950-47

FREE Shipping over $79 PlayButton
Broil King grill

Genuine Broil King factory replacement parts

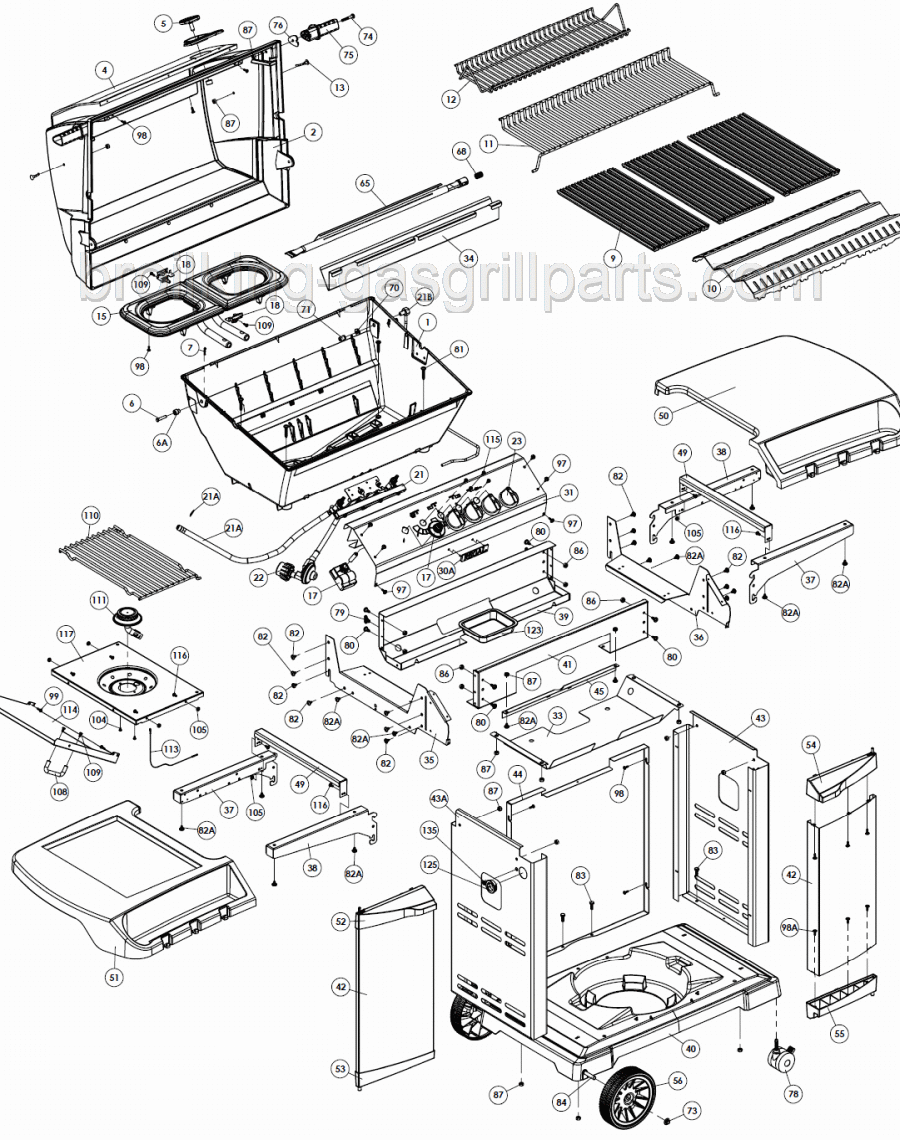

Here's the parts we have for model 950-47
Orders $79 and above ship Free to USA*



3
10081-BK630 NAMEPLATE HI BROIL KING BLACK ZINC

Note: Part 10081-BK630 is the factory authorized replacement for the following parts, which are no longer available:

  • OMC:10081-BK603
MORE...


$12.03

5
10571-6 Genuine OEM Heat indicator. About 2 3/8" wide and 2" high. The threaded stem is about 5 /16" diameter and 1 1/8" long.

Note: Part 10571-6 is the factory authorized replacement for the following parts, which are no longer available:

  • OMC:31935-5
  • OMC:571-C500
MORE...


$21.20

7
S21233 Hinge pin clip.

Note: Part S21233 is the factory authorized replacement for the following parts, which are no longer available:

  • OMC:S21232
MORE...


$1.08

10
10222-T425 Genuine OEM stainless steel Flav-R-Wave heat plate. Also replaces porcelain-steel lava rock/briquette grate part# 10222-T424, which has been discontinued by the manufacturer.

Note: Part 10222-T425 is the factory authorized replacement for the following parts, which are no longer available:

  • OMC:10222-T424
MORE...


$58.85

12
10225-T547 Genuine OEM warming rack (swing basket). MORE...

$38.41

15
10390-T501 Genuine OEM stainless steel Infinity burner assembly. This burner assembly does not include the electrodes. Includes:
  • One stainless steel Infinity burner
  • Twin venturi with spider exclusion screens

Note: Part 10390-T501 is the factory authorized replacement for the following parts, which are no longer available:

  • OMC:10390-T501D
  • OMC:10390-T501S
MORE...


$86.60

17
10342-246 Genuine OEM electronic push-button 3-spade igniter.
  • Uses AAA battery (not included)
  • .Requires 3/4" mounting hole

Note: Part 10342-246 is the factory authorized replacement for the following parts, which are no longer available:

  • OMC:10342-C246
MORE...


$16.16

18
10342-T301 Genuine OEM collector box and electrode assembly. Includes:
  • burner mounted box with mounting screw
  • ceramic electrode and 17" wire with round connector and protective sleeve
  • Use with burners 10390-T401 (14102) and 10390-T501 (14212) MORE...

$10.95

21
10442-D52 CONTROL ASSY 50/10M 3V LP XL
SPECIAL ORDER PART. This part is not in stock. Orders for this part may not ship for 4 to 10 weeks, depending on availablity and ship times from the manufacturer. MORE...

$57.74

21
10442-D53 CONTROL ASSY 50/10M 3V NG XL
SPECIAL ORDER PART. This part is not in stock. Orders for this part may not ship for 4 to 10 weeks, depending on availablity and ship times from the manufacturer. MORE...

$57.74

21A
S13467-132 NG side burner hose no longer available separately.
Now sold only as entire valve assembly. Please verify your model number per the certification tag on your gas grill. MORE...

$24.42

21A
Y-11230 Cotter pin MORE...

$1.08

22
ASCPL-1 Five piece 3/8" natural gas quick disconnect set includes:
  • Part ASCPL-2 12ft vinyl 3/8" ID Sturgis hose (3/8" inside diameter outside diameter about 1/2") with solid brass fittings
  • Part ASCPL-3 Sturgis brand 3/8" quick connect brass coupler
  • Hansen & Sturgis dust cover
  • plastic dust plug
  • Plastic 3/8 MPT Snap Tite
  • Suitable up to approximately 60,000 BTU. MORE...

$79.46

23

10472-K431 Control knob large. Black with stainless steel BA strip. MORE...


$5.94

37
10184-R581 Shelf support, left. MORE...

$10.35

38
10184-R591 SHELF SUPPORT RH BLK(18") MORE...

$10.35

52
10184-E78A Genuine OEM End Cap, door. Left hand side, with magnet.

Note: Part 10184-E78A is the factory authorized replacement for the following parts, which are no longer available:

  • OMC:10184-E78
MORE...


$6.33

53
10184-E76 END CAP DOOR BOTTOM LEFT A MORE...

$5.73

54
10184-E79A Genuine OEM End Cap, door. RIght hand side, with magnet.

Note: Part 10184-E79A is the factory authorized replacement for the following parts, which are no longer available:

  • OMC:10184-E79
MORE...


$6.15

55
10184-E77 END CAP DOOR BOTTOM RIGHT A MORE...

$6.26

56
10892-7G Genuine OEM 7" cart wheel with 3/8" axel hole. Mini hub cap is # 00400251, sold separately.

Note: Part 10892-7G is the factory authorized replacement for the following parts, which are no longer available:

  • OMC:10892-07
  • OMC:10892-17
  • OMC:10892-7
  • OMC:10892-70
MORE...


$13.19

73
S21420 Push nut 3/8 MORE...

$1.08

74
Y-6616 Bolt hex head 1 1/2" length MORE...

$1.08

76
10239-7 Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Note: Part 10239-7 is the factory authorized replacement for the following parts, which are no longer available:

  • OMC:10239-6
MORE...


$1.95

78
10892-15 Genuine OEM caster wheel; approximately 2 3/8" diameter.

Note: Part 10892-15 is the factory authorized replacement for the following parts, which are no longer available:

  • OMC:10892-13
MORE...


$6.11

104
Y-12835 SCREW-PHCP 6-32X1/4 TY-F JS500 MORE...

$0.70

108
PB20-60 S/B LID HANDLE WAGON ENCLOSER* MORE...

$1.95

110
10225-T10 Genuine OEM side burner grid MORE...

$25.62

111
10390-E10 Genuine OEM Side Burner. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow).

Note: Part 10390-E10 is the factory authorized replacement for the following parts, which are no longer available:

  • OMC:10390-E10D
  • OMC:10390-E10E
MORE...


$11.19

114
10393-K40 Genuine OEM Cover, side burner. MORE...

$18.73

123
S15115 Genuine OEM disposable grease pans. Package of 10. Each measures 4.75"x6"x1". MORE...

$15.13
