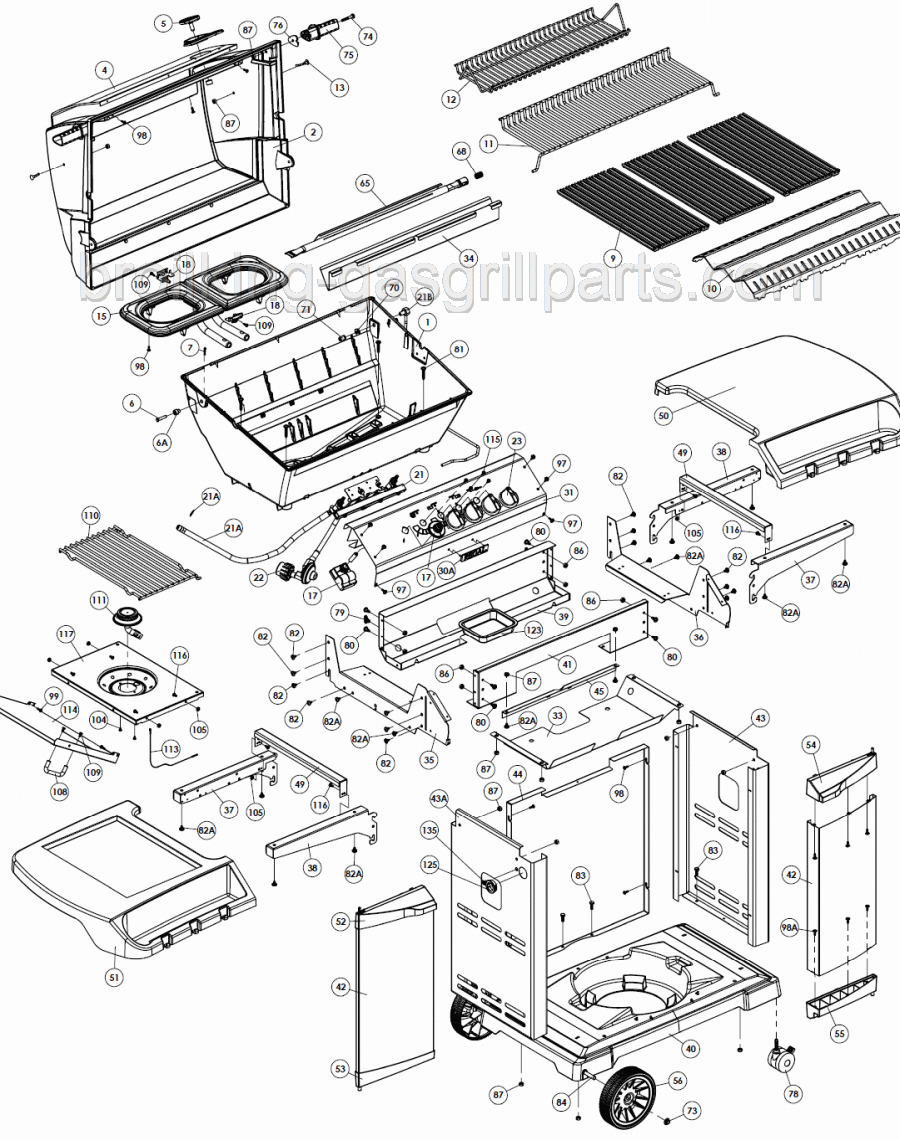

Grill model: 950-44

3

10081-BK630 NAMEPLATE HI BROIL KING BLACK ZINC
Temporarily out of stock. Orders for this part will ship late May.

Note: Part 10081-BK630 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10081-BK603

MORE...

5

10571-6 Genuine OEM Heat indicator. About 2 3/8" wide and 2" high. The threaded stem is about 5 /16" diameter and 1 1/8" long.

Note: Part 10571-6 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:31935-5
• OMC:571-C500

MORE...

7

S21233 Hinge pin clip.

Note: Part S21233 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:S21232

MORE...

10

10222-T425 Genuine OEM stainless steel Flav-R-Wave heat plate. Also replaces porcelain-steel lava rock/briquette grate part# 10222-T424, which has been discontinued by the manufacturer.

Note: Part 10222-T425 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10222-T424

MORE...

12

10225-T547 Genuine OEM warming rack (swing basket). MORE...

15

10390-T501 Genuine OEM stainless steel Infinity burner assembly. This burner assembly does not include the electrodes. Includes:

• One stainless steel Infinity burner
• Twin venturi with spider exclusion screens

Note: Part 10390-T501 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10390-T501D
• OMC:10390-T501S

MORE...

17

10342-246 Genuine OEM electronic push-button 3-spade igniter.

• Uses AAA battery (not included)
• .Requires 3/4" mounting hole

Note: Part 10342-246 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10342-C246

MORE...

18

10342-T301 Genuine OEM collector box and electrode assembly. Includes:

• burner mounted box with mounting screw
• ceramic electrode and 17" wire with round connector and protective sleeve
• Use with burners 10390-T401 (14102) and 10390-T501 (14212) MORE...

21

10442-D52 CONTROL ASSY 50/10M 3V LP XL
SPECIAL ORDER PART. This part is not in stock. Orders for this part may not ship for 4 to 10 weeks, depending on availablity and ship times from the manufacturer. MORE...

21

10442-D53 CONTROL ASSY 50/10M 3V NG XL
SPECIAL ORDER PART. This part is not in stock. Orders for this part may not ship for 4 to 10 weeks, depending on availablity and ship times from the manufacturer. MORE...

21A

S13467-091 LP side burner hose no longer available separately. For safety reasons, now sold only as entire valve assembly. Please verify your model number per the certification tag located on your gas grill. You can contact the manufacturer directly or email us for more information. MORE...

21A

Y-11230 Cotter pin MORE...

22

80012 24" LP hose and regulator with QCC-1 connection.

• For use on "new style" QCC-1 tanks.
• Consists of hose part# 01000 and regulator part# 00920.
• Hose end with SAE 3/8" female flare fitting connects to grill. MORE...

?

HR-4B Type 1 LP Regulator with 22" Pressure Hose and 3/8" Female Flare Fitting.FITS: Up to 60,000 BTUs MORE...

23

10472-K431 Control knob large. Black with stainless steel BA strip. MORE...

37

10184-R581 Shelf support, left. MORE...

38

10184-R591 SHELF SUPPORT RH BLK(18") MORE...

52

10184-E78A Genuine OEM End Cap, door. Left hand side, with magnet.
Temporarily out of stock. Orders for this part will ship late May.

Note: Part 10184-E78A is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10184-E78

MORE...

53

10184-E76 END CAP DOOR BOTTOM LEFT A MORE...

54

10184-E79A Genuine OEM End Cap, door. RIght hand side, with magnet.

Note: Part 10184-E79A is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10184-E79

MORE...

55

10184-E77 END CAP DOOR BOTTOM RIGHT A MORE...

56

10892-7G Genuine OEM 7" cart wheel with 3/8" axel hole. Mini hub cap is # 00400251, sold separately.

Note: Part 10892-7G is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10892-07
• OMC:10892-17
• OMC:10892-7
• OMC:10892-70

MORE...

73

S21420 Push nut 3/8 MORE...

74

Y-6616 Bolt hex head 1 1/2" length MORE...

76

10239-7 Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Note: Part 10239-7 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10239-6

MORE...

78

10892-15 Genuine OEM caster wheel; approximately 2 3/8" diameter.
Temporarily out of stock. Orders for this part will ship late May.

Note: Part 10892-15 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10892-13

MORE...

104

Y-12835 SCREW-PHCP 6-32X1/4 TY-F JS500 MORE...

108

PB20-60 S/B LID HANDLE WAGON ENCLOSER* MORE...

110

10225-T10 Genuine OEM side burner grid MORE...

111

10390-E10 Genuine OEM Side Burner. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow).
Temporarily out of stock. Orders for this part will ship late May.

Note: Part 10390-E10 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10390-E10D
• OMC:10390-E10E

MORE...

114

10393-K40 Genuine OEM Cover, side burner. MORE...

123

S15115 Genuine OEM disposable grease pans. Package of 10. Each measures 4.75"x6"x1". MORE...

?

10225-T424 Stainless Steel cooking grid. 50% T45 MORE...
