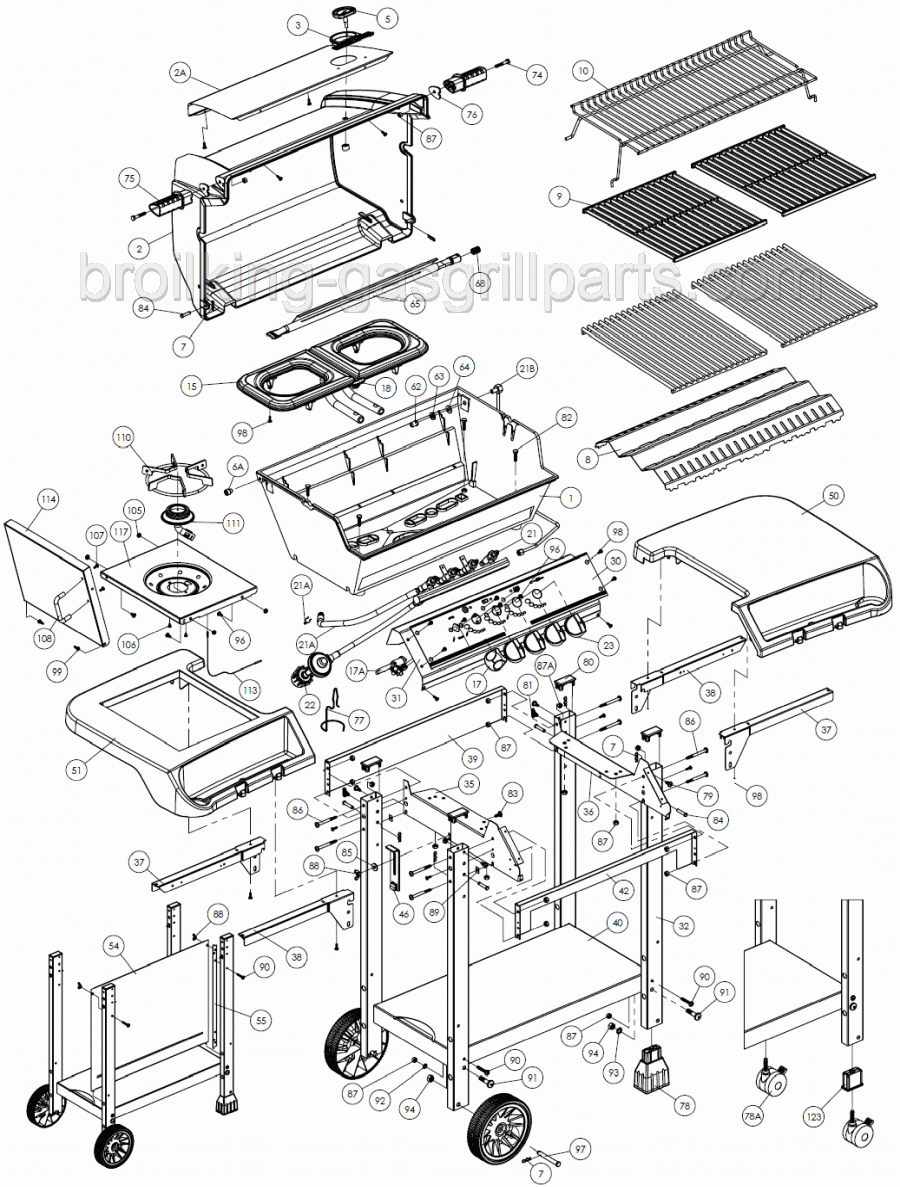

Grill model: 944-77 Crown 70

3

10081-BK630 NAMEPLATE HI BROIL KING BLACK ZINC
Temporarily out of stock. Orders for this part will ship late May.

Note: Part 10081-BK630 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10081-BK603

MORE...

5

10571-6 Genuine OEM Heat indicator. About 2 3/8" wide and 2" high. The threaded stem is about 5 /16" diameter and 1 1/8" long.

Note: Part 10571-6 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:31935-5
• OMC:571-C500

MORE...

7

S21233 Hinge pin clip.

Note: Part S21233 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:S21232

MORE...

8

10222-T325 Genuine OEM stainless steel Flav-R-Wave SS heat plate.

Note: Part 10222-T325 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10222-T324

MORE...

9

10225-T356 Genuine OEM cast iron cooking grid SOLD INDIVIDUALLY.

• Sold individually
• Number required varies, check your grill
• Porcelain treated, flat matte finish MORE...

15

10390-T401 Genuine OEM stainless steel burner and venturi assembly. MORE...

17

10472-K40 Genuine OEM rotary igniter knob. MORE...

17A

10342-247 Genuine OEM electronic push-button 4-spade igniter.

• Uses AAA battery (not included)
• Requires 3/4" mounting hole

Temporarily out of stock. Orders for this part will ship late May.

Note: Part 10342-247 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10342-248
• OMC:10342-C247

MORE...

18

10342-T301 Genuine OEM collector box and electrode assembly. Includes:

• burner mounted box with mounting screw
• ceramic electrode and 17" wire with round connector and protective sleeve
• Use with burners 10390-T401 (14102) and 10390-T501 (14212) MORE...

21

10440-E41 CONTROL ASSEMBLY 3 VALVE NG MORE...

21B

10110-96 Gas tube to rear burner assembly. Connects control valve assembly to rear rotisserie burner. MORE...

22

ASCPL-1 Five piece 3/8" natural gas quick disconnect set includes:

• Part ASCPL-2 12ft vinyl 3/8" ID Sturgis hose (3/8" inside diameter outside diameter about 1/2") with solid brass fittings
• Part ASCPL-3 Sturgis brand 3/8" quick connect brass coupler
• Hansen & Sturgis dust cover
• plastic dust plug
• Plastic 3/8 MPT Snap Tite
• Suitable up to approximately 60,000 BTU. MORE...

23

10472-K431 Control knob large. Black with stainless steel BA strip. MORE...

38

10184-E461 SHELF SUPPORT LH BLK MORE...

56

10892-7G Genuine OEM 7" cart wheel with 3/8" axel hole. Mini hub cap is # 00400251, sold separately.

Note: Part 10892-7G is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10892-07
• OMC:10892-17
• OMC:10892-7
• OMC:10892-70

MORE...

65

S13006 Genuine OEM stainless steel rear tube burner. Does not include collector box, electrode, wire. See part number S13006A. MORE...

68

S21362 REAR BURNER SPRING MORE...

74

Y-6616 Bolt hex head 1 1/2" length MORE...

76

10239-7 Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Note: Part 10239-7 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10239-6

MORE...

77

S15111 Stainless steel wire grease cup holder for mini bucket #S15112 which has been discontinued and replaced with mini bucket # 4673-FC. This wire holder can also be used with tin cans for easy disposal of grease. MORE...

78A

10892-15 Genuine OEM caster wheel; approximately 2 3/8" diameter.
Temporarily out of stock. Orders for this part will ship late May.

Note: Part 10892-15 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10892-13

MORE...

?

63262 Cast iron cooking grids. Porcelain treated, flat matte finish. Sold as a set of two (2).
NOTE: This is an Aftermarket part, NOT an original factory part. MORE...
