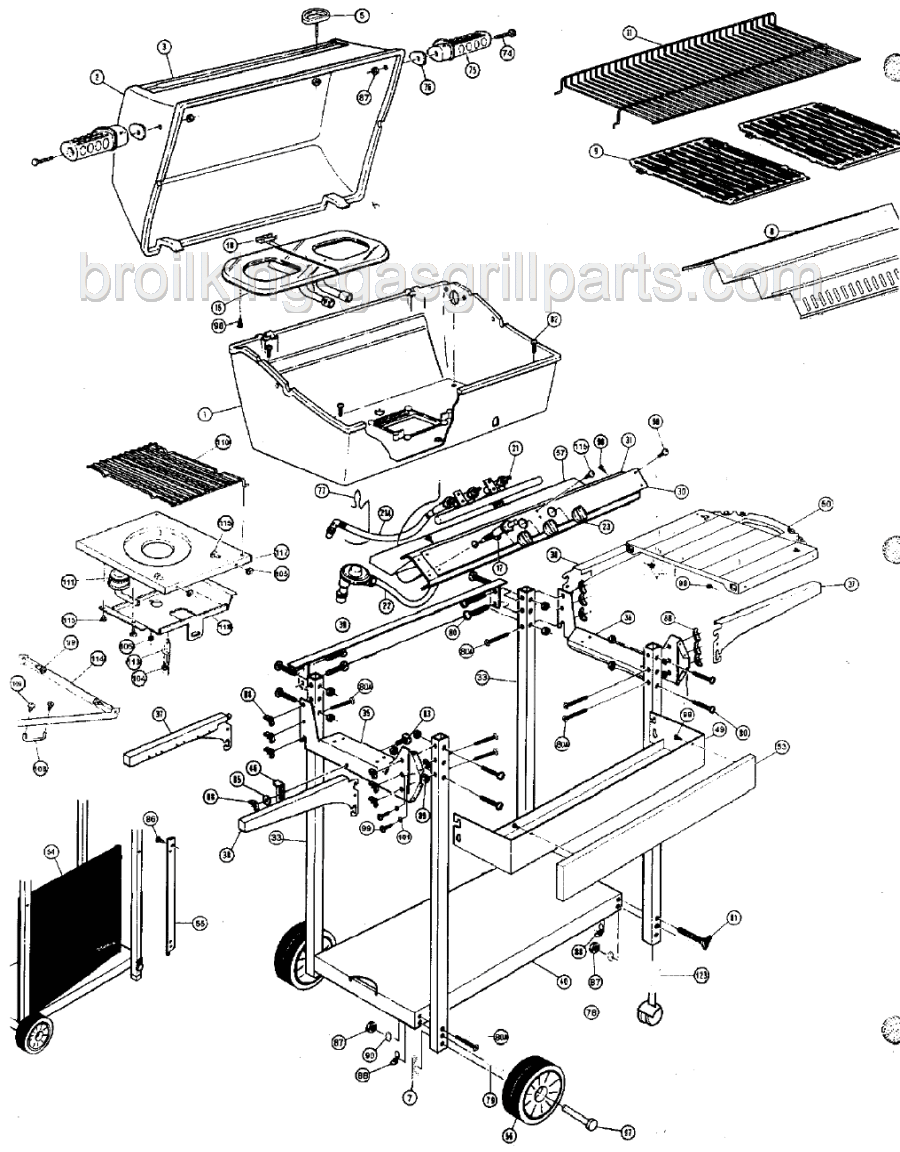

Grill model: 942-47 Crown 4

5

10571-5 Genuine OEM Heat indicator. About 1 7/8" wide and 1 7/16" high. The threaded stem is about 5/16" diameter and 1 1/8" long. MORE...

7

S21233 Hinge pin clip.

Note: Part S21233 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:S21232

MORE...

14

CLA-AC0394 High quality, long lasting ceramic briquettes. 59 flat top pyramid-shaped briquettes per box. Placed 1/2" apart, 59 briquetes will cover about 368 square inches. This is an area roughly 15" x 24".

• Top quality product
• Each briquette measure 2" x 2"
• Self cleaning
• Great heat distibution, retains heat longer
• Can be used on all grills that use briquettes or lava rock
• Use a single layer (multiple layers can reduce temperatures)

NOTE: These high quality ceramic briquetes are available in 59 count, 70 count, and 90 count qantities.

• 59 briquetes covers an area apprimately 15" x 24"
• 70 briquetes covers an area apprimately 17" x 26"
• 90 briquetes covers an area apprimately 17" x 33"

MORE...

15

10390-T401 Genuine OEM stainless steel burner and venturi assembly. MORE...

17

10342-22 Genuine OEM push button igniter. For two-wire grills with second wire for side burner. Wires not included. MORE...

18

10342-T301 Genuine OEM collector box and electrode assembly. Includes:

• burner mounted box with mounting screw
• ceramic electrode and 17" wire with round connector and protective sleeve
• Use with burners 10390-T401 (14102) and 10390-T501 (14212) MORE...

22

ASCPL-1 Five piece 3/8" natural gas quick disconnect set includes:

• Part ASCPL-2 12ft vinyl 3/8" ID Sturgis hose (3/8" inside diameter outside diameter about 1/2") with solid brass fittings
• Part ASCPL-3 Sturgis brand 3/8" quick connect brass coupler
• Hansen & Sturgis dust cover
• plastic dust plug
• Plastic 3/8 MPT Snap Tite
• Suitable up to approximately 60,000 BTU. MORE...

23

10472-K431 Control knob large. Black with stainless steel BA strip. MORE...

57

10156-K40 HEAT SHIELD 940 1600 MORE...

74

Y-6616 Bolt hex head 1 1/2" length MORE...

76

10239-7 Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Note: Part 10239-7 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10239-6

MORE...

77

S15111 Stainless steel wire grease cup holder for mini bucket #S15112 which has been discontinued and replaced with mini bucket # 4673-FC. This wire holder can also be used with tin cans for easy disposal of grease. MORE...

85

S21255 Washer MORE...

104

Y-12835 SCREW-PHCP 6-32X1/4 TY-F JS500 MORE...

106

PB20-60 S/B LID HANDLE WAGON ENCLOSER* MORE...

110

10225-T10 Genuine OEM side burner grid MORE...

114

10393-K40 Genuine OEM Cover, side burner. MORE...
