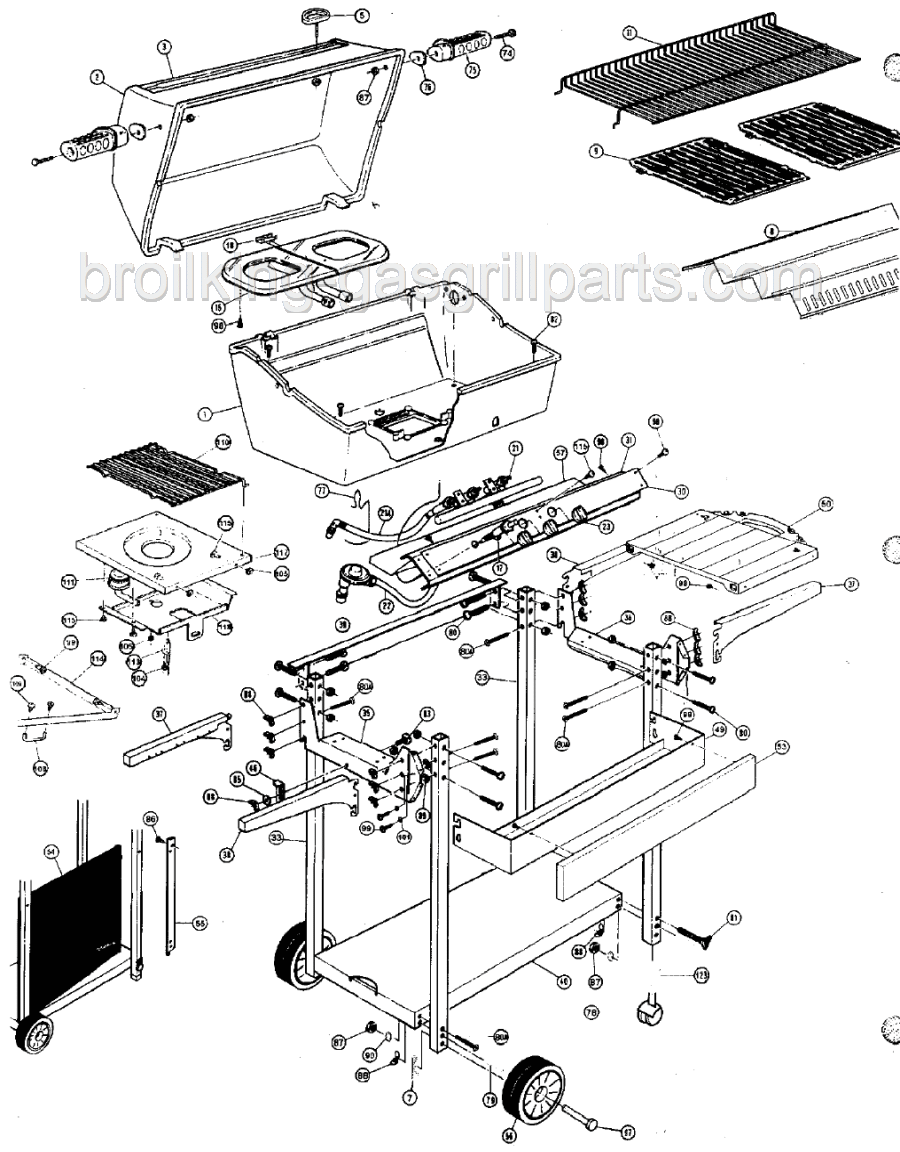

Grill model: 942-24 Crown 2

5

10571-5 Genuine OEM Heat indicator. About 1 7/8" wide and 1 7/16" high. The threaded stem is about 5/16" diameter and 1 1/8" long. MORE...

7

S21233 Hinge pin clip.

Note: Part S21233 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:S21232

MORE...

14

CLA-AC0394 High quality, long lasting ceramic briquettes. 59 flat top pyramid-shaped briquettes per box. Placed 1/2" apart, 59 briquetes will cover about 368 square inches. This is an area roughly 15" x 24".

• Top quality product
• Each briquette measure 2" x 2"
• Self cleaning
• Great heat distibution, retains heat longer
• Can be used on all grills that use briquettes or lava rock
• Use a single layer (multiple layers can reduce temperatures)

NOTE: These high quality ceramic briquetes are available in 59 count, 70 count, and 90 count qantities.

• 59 briquetes covers an area apprimately 15" x 24"
• 70 briquetes covers an area apprimately 17" x 26"
• 90 briquetes covers an area apprimately 17" x 33"

MORE...

15

10390-T401 Genuine OEM stainless steel burner and venturi assembly. MORE...

17

10342-21 Push button igniter. For single wire for grills with no side burner. Wires not included. Comes in black or grey as available from manufacturer.
Temporarily out of stock. Orders for this part will ship late May. MORE...

18

10342-T301 Genuine OEM collector box and electrode assembly. Includes:

• burner mounted box with mounting screw
• ceramic electrode and 17" wire with round connector and protective sleeve
• Use with burners 10390-T401 (14102) and 10390-T501 (14212) MORE...

22

80012 24" LP hose and regulator with QCC-1 connection.

• For use on "new style" QCC-1 tanks.
• Consists of hose part# 01000 and regulator part# 00920.
• Hose end with SAE 3/8" female flare fitting connects to grill. MORE...

?

HR-4B Type 1 LP Regulator with 22" Pressure Hose and 3/8" Female Flare Fitting.FITS: Up to 60,000 BTUs MORE...

23

10472-K431 Control knob large. Black with stainless steel BA strip. MORE...

57

10156-K40 HEAT SHIELD 940 1600 MORE...

74

Y-6616 Bolt hex head 1 1/2" length MORE...

76

10239-7 Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Note: Part 10239-7 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10239-6

MORE...

77

S15111 Stainless steel wire grease cup holder for mini bucket #S15112 which has been discontinued and replaced with mini bucket # 4673-FC. This wire holder can also be used with tin cans for easy disposal of grease. MORE...

85

S21255 Washer MORE...

104

Y-12835 SCREW-PHCP 6-32X1/4 TY-F JS500 MORE...
