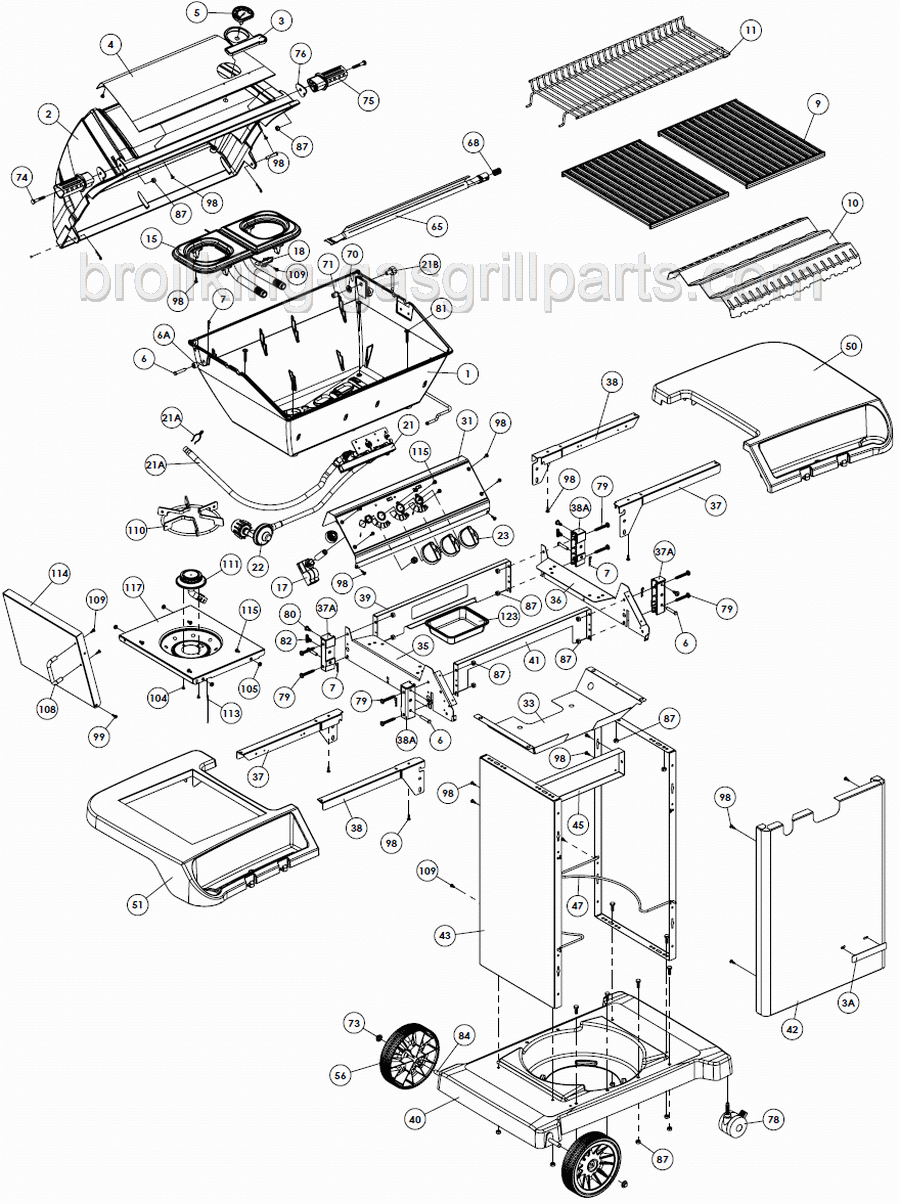

Grill model: 9346-67 Monarch 40

3

10081-BK630 NAMEPLATE HI BROIL KING BLACK ZINC
Temporarily out of stock. Orders for this part will ship late May.

Note: Part 10081-BK630 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10081-BK603

MORE...

5

10571-6 Genuine OEM Heat indicator. About 2 3/8" wide and 2" high. The threaded stem is about 5 /16" diameter and 1 1/8" long.

Note: Part 10571-6 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:31935-5
• OMC:571-C500

MORE...

7

S21233 Hinge pin clip.

Note: Part S21233 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:S21232

MORE...

9

10225-T356 Genuine OEM cast iron cooking grid SOLD INDIVIDUALLY.

• Sold individually
• Number required varies, check your grill
• Porcelain treated, flat matte finish MORE...

10

10222-T325 Genuine OEM stainless steel Flav-R-Wave SS heat plate.

Note: Part 10222-T325 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10222-T324

MORE...

15

10390-T401 Genuine OEM stainless steel burner and venturi assembly. MORE...

17

10342-245 Genuine OEM electronic push-button 2-spade igniter.

• Uses AAA battery (not included)
• .Requires 3/4" mounting hole
• Also replaces part# 10342-242 and 10342-249

Note: Part 10342-245 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10342-242

MORE...

18

10342-T301 Genuine OEM collector box and electrode assembly. Includes:

• burner mounted box with mounting screw
• ceramic electrode and 17" wire with round connector and protective sleeve
• Use with burners 10390-T401 (14102) and 10390-T501 (14212) MORE...

21

10442-E39 CONTROL ASSEMBLY 44 10M 3V NG -- T35
SPECIAL ORDER PART. This part is not in stock. Orders for this part may not ship for 4 to 10 weeks, depending on availablity and ship times from the manufacturer. MORE...

21A

S13467-091 LP side burner hose no longer available separately. For safety reasons, now sold only as entire valve assembly. Please verify your model number per the certification tag located on your gas grill. You can contact the manufacturer directly or email us for more information. MORE...

21A

S13467-132 NG side burner hose no longer available separately.
Now sold only as entire valve assembly. Please verify your model number per the certification tag on your gas grill. MORE...

21A

Y-11230 Cotter pin MORE...

22

ASCPL-1 Five piece 3/8" natural gas quick disconnect set includes:

• Part ASCPL-2 12ft vinyl 3/8" ID Sturgis hose (3/8" inside diameter outside diameter about 1/2") with solid brass fittings
• Part ASCPL-3 Sturgis brand 3/8" quick connect brass coupler
• Hansen & Sturgis dust cover
• plastic dust plug
• Plastic 3/8 MPT Snap Tite
• Suitable up to approximately 60,000 BTU. MORE...

23

10472-K431 Control knob large. Black with stainless steel BA strip. MORE...

37

10184-E461 SHELF SUPPORT LH BLK MORE...

45

10184-E225 BRACE PEDESTAL BLK CHROME MORE...

51

10711-E563 SHELF SB EZ-BILT W/O BRACKET MORE...

56

10892-7G Genuine OEM 7" cart wheel with 3/8" axel hole. Mini hub cap is # 00400251, sold separately.

Note: Part 10892-7G is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10892-07
• OMC:10892-17
• OMC:10892-7
• OMC:10892-70

MORE...

73

S21420 Push nut 3/8 MORE...

74

Y-6616 Bolt hex head 1 1/2" length MORE...

76

10239-7 Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Note: Part 10239-7 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10239-6

MORE...

78

10892-15 Genuine OEM caster wheel; approximately 2 3/8" diameter.
Temporarily out of stock. Orders for this part will ship late May.

Note: Part 10892-15 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10892-13

MORE...

104

Y-12835 SCREW-PHCP 6-32X1/4 TY-F JS500 MORE...

108

PB20-60 S/B LID HANDLE WAGON ENCLOSER* MORE...

111

10390-E10 Genuine OEM Side Burner. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow).
Temporarily out of stock. Orders for this part will ship late May.

Note: Part 10390-E10 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10390-E10D
• OMC:10390-E10E

MORE...

113

10342-T14 Genuine OEM 21" wire for side burner or other applications. One female spade connector, one female round connector. MORE...

123

S15115 Genuine OEM disposable grease pans. Package of 10. Each measures 4.75"x6"x1". MORE...

?

63262 Cast iron cooking grids. Porcelain treated, flat matte finish. Sold as a set of two (2).
NOTE: This is an Aftermarket part, NOT an original factory part. MORE...
