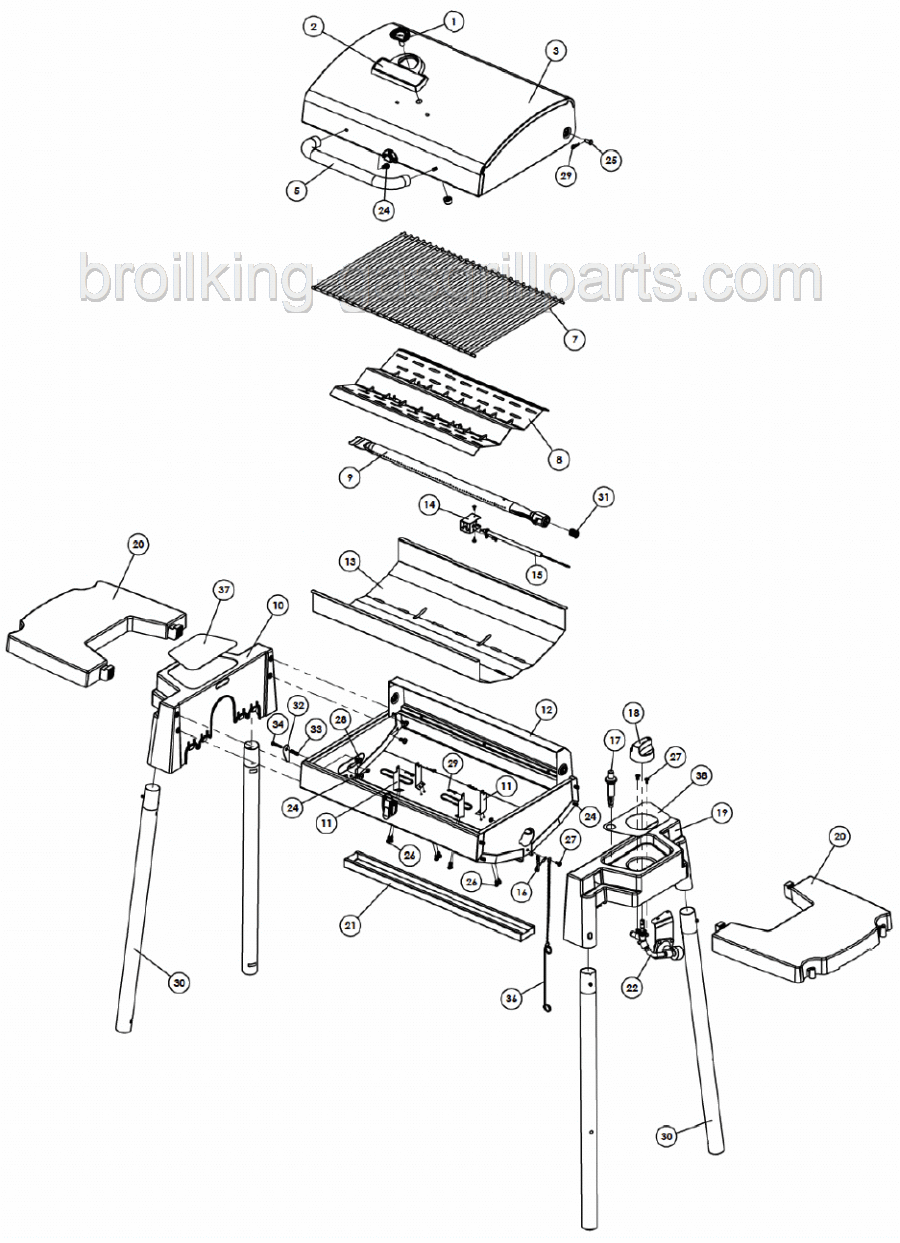

Grill model: 8003-24 Porta-Chef

1

10571-5 Genuine OEM Heat indicator. About 1 7/8" wide and 1 7/16" high. The threaded stem is about 5/16" diameter and 1 1/8" long. MORE...

5

34211-93 HANDLE LID - BALCONY CHEF MORE...

8

32543-18 FLAV-R-WAVE - BALCONY CHEF MORE...

13

32241-15 HEAT SHIELD - BALCONY CHEF MORE...

14

32209-104 COLLECTOR BOX * MORE...

15

32201-81 ELECTRODE SS250 MORE...

17

10342-22 Genuine OEM push button igniter. For two-wire grills with second wire for side burner. Wires not included. MORE...

18

22004-968 CONTROL KNOB MORE...

21

32551-17 GREASE TRAY - BALCONY CHEF MORE...

29

S21233 Hinge pin clip.

Note: Part S21233 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:S21232

MORE...

31

S21362 REAR BURNER SPRING MORE...

32

32151-17 BLOCK GREASE TRAY MORE...

33

32991-01 SPRING GREASE TRAY MORE...
