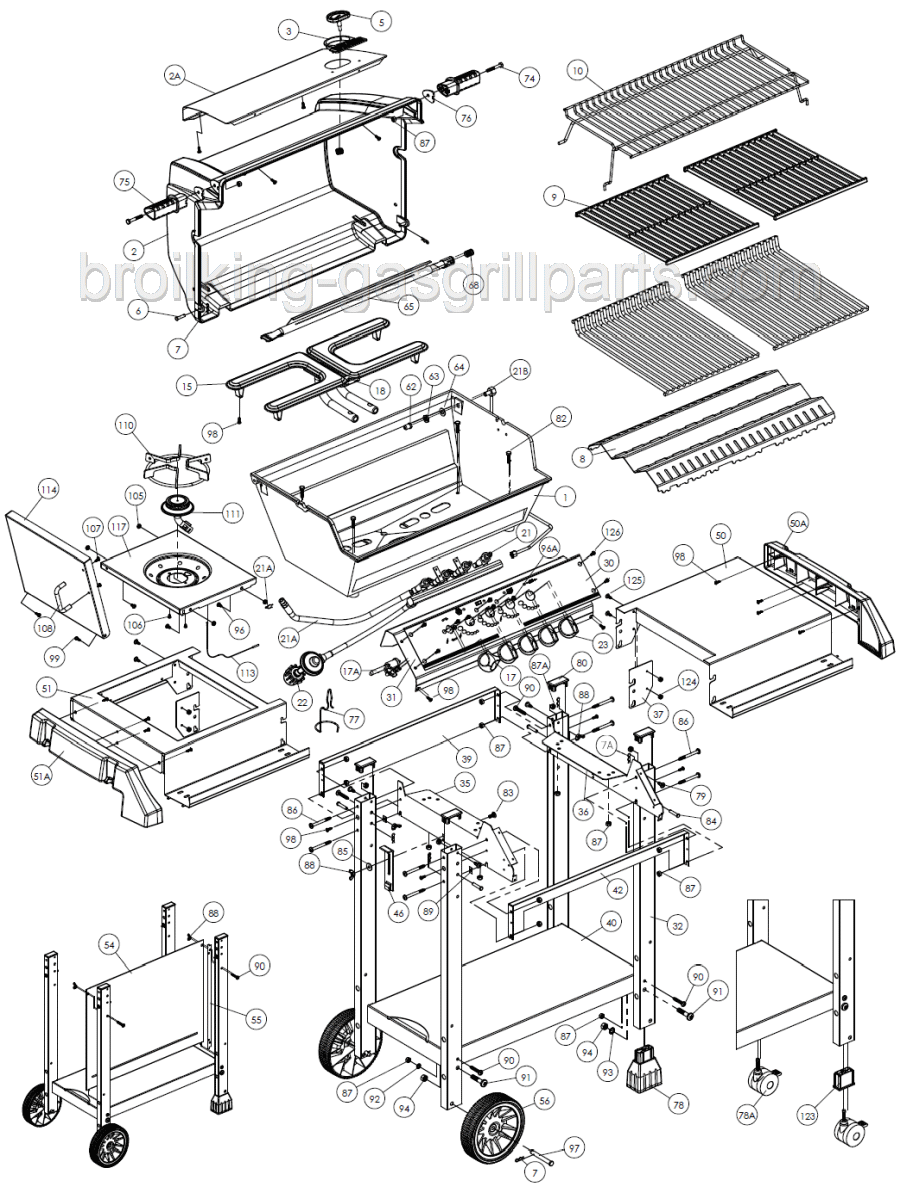

Grill model: 5542-4 Signet 40

3

10081-BK630 NAMEPLATE HI BROIL KING BLACK ZINC
Temporarily out of stock. Orders for this part will ship late May.

Note: Part 10081-BK630 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10081-BK603

MORE...

5

10571-6 Genuine OEM Heat indicator. About 2 3/8" wide and 2" high. The threaded stem is about 5 /16" diameter and 1 1/8" long.

Note: Part 10571-6 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:31935-5
• OMC:571-C500

MORE...

8

10222-T425 Genuine OEM stainless steel Flav-R-Wave heat plate. Also replaces porcelain-steel lava rock/briquette grate part# 10222-T424, which has been discontinued by the manufacturer.

Note: Part 10222-T425 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10222-T424

MORE...

9

CG-21SS Premium grade solid stainless steel grid with 1/4" rods. Sold individually, two (2) required.
NOTE: This is an Aftermarket part, NOT an original factory part.

Note: Part CG-21SS is the factory authorized replacement for the following parts, which are no longer available:

• CG-21P

MORE...

10

CLA-WS0192 Premium grade stainless steel warming rack. This rack made to replace part numbers S12205, S12206, and S12207, which are no longer available from the manufacturer. Made in USA
NOTE: This is an Aftermarket part, NOT an original factory part. MORE...

15

S10017 Genuine OEM stainless steel burner and venturi assembly. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled. MORE...

17

10472-K40 Genuine OEM rotary igniter knob. MORE...

18

S15500 Genuine OEM collector box and electrode assembly. Includes

• burner mounted collector box (clip on)
• ceramic electrode and 18" wire with round connector and protective sleeve. MORE...

21

10442-T62 CONTROL ASSEMBLY 50 10 15M 4V -- LP
SPECIAL ORDER PART. This part is not in stock. Orders for this part may not ship for 4 to 10 weeks, depending on availablity and ship times from the manufacturer. MORE...

21A

S13467-091 LP side burner hose no longer available separately. For safety reasons, now sold only as entire valve assembly. Please verify your model number per the certification tag located on your gas grill. You can contact the manufacturer directly or email us for more information. MORE...

21A

Y-11230 Cotter pin MORE...

22

80012 24" LP hose and regulator with QCC-1 connection.

• For use on "new style" QCC-1 tanks.
• Consists of hose part# 01000 and regulator part# 00920.
• Hose end with SAE 3/8" female flare fitting connects to grill. MORE...

?

HR-4B Type 1 LP Regulator with 22" Pressure Hose and 3/8" Female Flare Fitting.FITS: Up to 60,000 BTUs MORE...

23

10472-K431 Control knob large. Black with stainless steel BA strip. MORE...

56

10892-7G Genuine OEM 7" cart wheel with 3/8" axel hole. Mini hub cap is # 00400251, sold separately.

Note: Part 10892-7G is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10892-07
• OMC:10892-17
• OMC:10892-7
• OMC:10892-70

MORE...

68

S21362 REAR BURNER SPRING MORE...

74

Y-6616 Bolt hex head 1 1/2" length MORE...

76

10239-7 Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Note: Part 10239-7 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10239-6

MORE...

77

S15111 Stainless steel wire grease cup holder for mini bucket #S15112 which has been discontinued and replaced with mini bucket # 4673-FC. This wire holder can also be used with tin cans for easy disposal of grease. MORE...

78A

10892-15 Genuine OEM caster wheel; approximately 2 3/8" diameter.
Temporarily out of stock. Orders for this part will ship late May.

Note: Part 10892-15 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10892-13

MORE...

106

Y-12835 SCREW-PHCP 6-32X1/4 TY-F JS500 MORE...

218

10110-94 Gas line tube for rear rotisserie burner. MORE...

?

S21233 Hinge pin clip.

Note: Part S21233 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:S21232

MORE...
