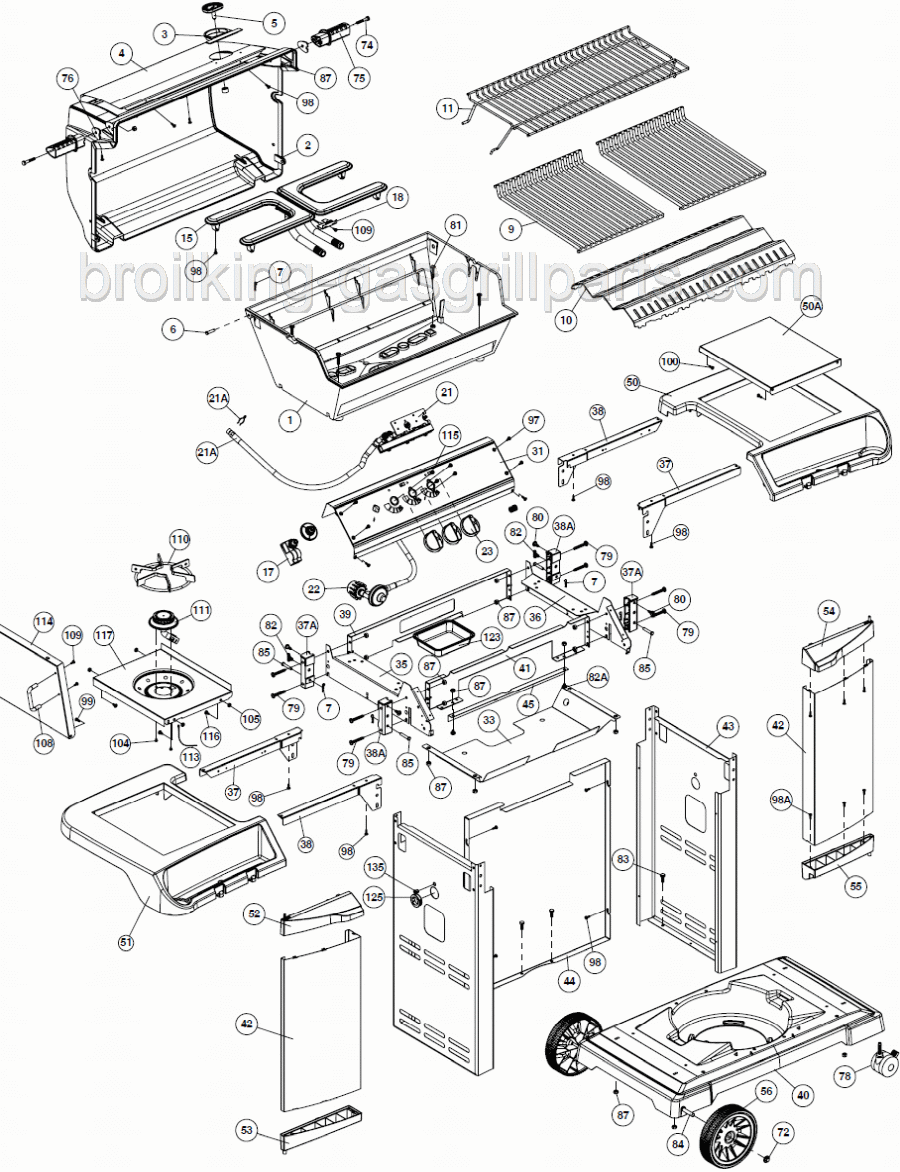

Grill model: 5528-7CM Signet Classic

3

10081-BK630 NAMEPLATE HI BROIL KING BLACK ZINC
Temporarily out of stock. Orders for this part will ship late May.

Note: Part 10081-BK630 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10081-BK603

MORE...

5

10571-6 Genuine OEM Heat indicator. About 2 3/8" wide and 2" high. The threaded stem is about 5 /16" diameter and 1 1/8" long.

Note: Part 10571-6 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:31935-5
• OMC:571-C500

MORE...

7

S21233 Hinge pin clip.

Note: Part S21233 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:S21232

MORE...

9

S12024 Two level 304 grade stainless steel cooking grid SOLD INDIVIDUALLY

• Sold individually
• Number required varies, check your grill MORE...

10

10222-T425 Genuine OEM stainless steel Flav-R-Wave heat plate. Also replaces porcelain-steel lava rock/briquette grate part# 10222-T424, which has been discontinued by the manufacturer.

Note: Part 10222-T425 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10222-T424

MORE...

11

CLA-WS0192 Premium grade stainless steel warming rack. This rack made to replace part numbers S12205, S12206, and S12207, which are no longer available from the manufacturer. Made in USA
NOTE: This is an Aftermarket part, NOT an original factory part. MORE...

15

S10017 Genuine OEM stainless steel burner and venturi assembly. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled. MORE...

17

10342-245 Genuine OEM electronic push-button 2-spade igniter.

• Uses AAA battery (not included)
• .Requires 3/4" mounting hole
• Also replaces part# 10342-242 and 10342-249

Note: Part 10342-245 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10342-242

MORE...

18

S15500 Genuine OEM collector box and electrode assembly. Includes

• burner mounted collector box (clip on)
• ceramic electrode and 18" wire with round connector and protective sleeve. MORE...

21

10442-T53 Gas control assembly for natuarl gas models. NG-3V. Includes valves, no hose.
SPECIAL ORDER PART. This part is not in stock. Orders for this part may not ship for 4 to 10 weeks, depending on availablity and ship times from the manufacturer. MORE...

21A

S13467-132 NG side burner hose no longer available separately.
Now sold only as entire valve assembly. Please verify your model number per the certification tag on your gas grill. MORE...

21A

Y-11230 Cotter pin MORE...

22

ASCPL-1 Five piece 3/8" natural gas quick disconnect set includes:

• Part ASCPL-2 12ft vinyl 3/8" ID Sturgis hose (3/8" inside diameter outside diameter about 1/2") with solid brass fittings
• Part ASCPL-3 Sturgis brand 3/8" quick connect brass coupler
• Hansen & Sturgis dust cover
• plastic dust plug
• Plastic 3/8 MPT Snap Tite
• Suitable up to approximately 60,000 BTU. MORE...

23

10472-K431 Control knob large. Black with stainless steel BA strip. MORE...

37

10184-E461 SHELF SUPPORT LH BLK MORE...

51

10711-E563 SHELF SB EZ-BILT W/O BRACKET MORE...

52

10184-E78A Genuine OEM End Cap, door. Left hand side, with magnet.
Temporarily out of stock. Orders for this part will ship late May.

Note: Part 10184-E78A is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10184-E78

MORE...

53

10184-E76 END CAP DOOR BOTTOM LEFT A MORE...

54

10184-E79A Genuine OEM End Cap, door. RIght hand side, with magnet.

Note: Part 10184-E79A is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10184-E79

MORE...

55

10184-E77 END CAP DOOR BOTTOM RIGHT A MORE...

74

Y-6616 Bolt hex head 1 1/2" length MORE...

76

10239-7 Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Note: Part 10239-7 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10239-6

MORE...

78

10892-15 Genuine OEM caster wheel; approximately 2 3/8" diameter.
Temporarily out of stock. Orders for this part will ship late May.

Note: Part 10892-15 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10892-13

MORE...

104

Y-12835 SCREW-PHCP 6-32X1/4 TY-F JS500 MORE...

108

PB20-60 S/B LID HANDLE WAGON ENCLOSER* MORE...

111

10390-E10 Genuine OEM Side Burner. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow).
Temporarily out of stock. Orders for this part will ship late May.

Note: Part 10390-E10 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10390-E10D
• OMC:10390-E10E

MORE...

113

10342-T14 Genuine OEM 21" wire for side burner or other applications. One female spade connector, one female round connector. MORE...

123

S15115 Genuine OEM disposable grease pans. Package of 10. Each measures 4.75"x6"x1". MORE...
