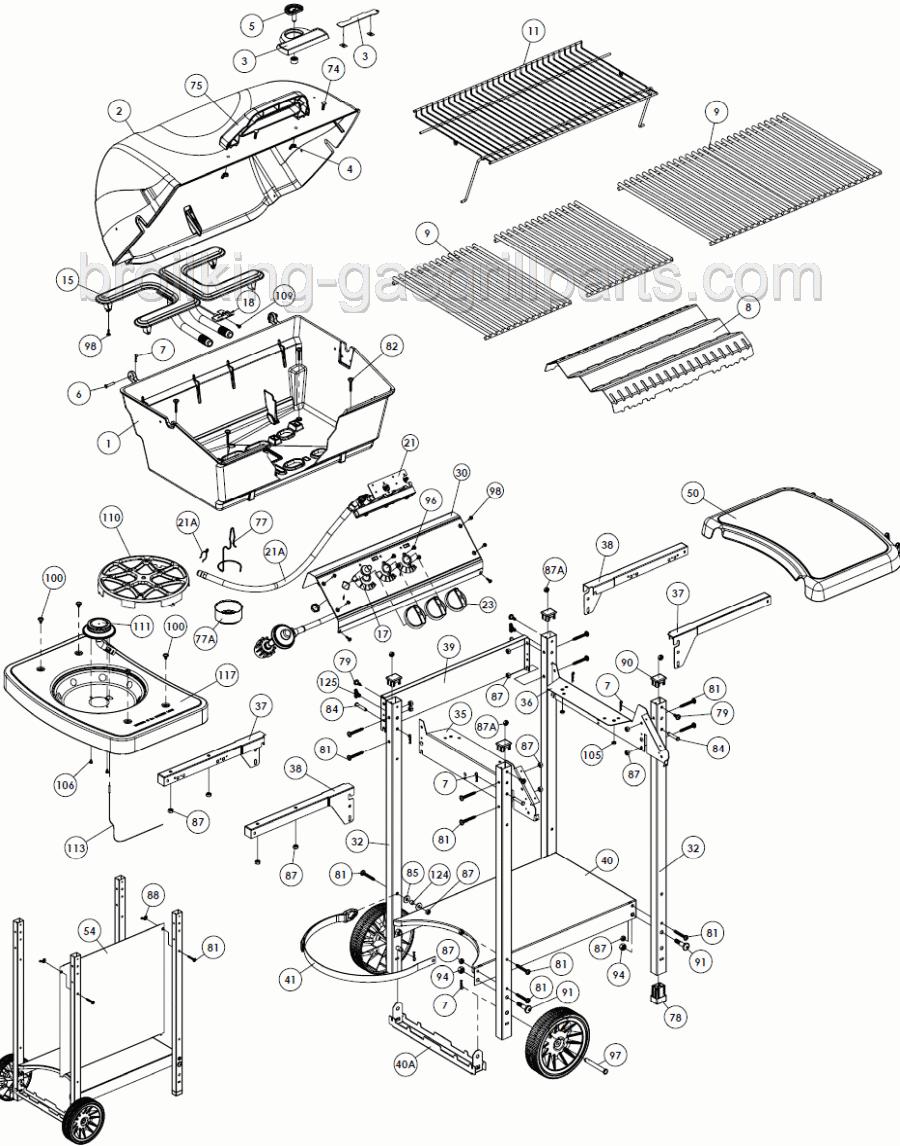

Grill model: 536-33GBC

3

10081-BK50 Broil King name plate. MORE...

5

10571-5 Genuine OEM Heat indicator. About 1 7/8" wide and 1 7/16" high. The threaded stem is about 5/16" diameter and 1 1/8" long. MORE...

7

S21233 Hinge pin clip.

Note: Part S21233 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:S21232

MORE...

8

10222-T225 Genuine OEM stainless steel Flav-R-Wave heat plate. MORE...

11

38110174 Genuine OEM warming rack.

• Front-to-back of rack itself: 9 5/8"
• Side-to-side of rack itself: 19 1/2"
• Length of rear mounting rod: 22 1/2"
• Length of front swing-away rod: 22" MORE...

15

10390-T301 Genuine OEM stainless steel burner and venturi assembly.
Temporarily out of stock. Orders for this part will ship late May. MORE...

17

10342-22 Genuine OEM push button igniter. For two-wire grills with second wire for side burner. Wires not included. MORE...

18

10342-T301 Genuine OEM collector box and electrode assembly. Includes:

• burner mounted box with mounting screw
• ceramic electrode and 17" wire with round connector and protective sleeve
• Use with burners 10390-T401 (14102) and 10390-T501 (14212) MORE...

21

10442-E32E CONTROL ASSEMBLY 11.5KW 3V
SPECIAL ORDER PART. This part is not in stock. Orders for this part may not ship for 4 to 10 weeks, depending on availablity and ship times from the manufacturer. MORE...

21A

S13467-079 HOSE SIDE BRNR W/.079 ORIFICE MORE...

21B

Y-11230 Cotter pin MORE...

23

10472-K431 Control knob large. Black with stainless steel BA strip. MORE...

56

10892-7G Genuine OEM 7" cart wheel with 3/8" axel hole. Mini hub cap is # 00400251, sold separately.

Note: Part 10892-7G is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10892-07
• OMC:10892-17
• OMC:10892-7
• OMC:10892-70

MORE...

77

S15111 Stainless steel wire grease cup holder for mini bucket #S15112 which has been discontinued and replaced with mini bucket # 4673-FC. This wire holder can also be used with tin cans for easy disposal of grease. MORE...

77A

S15112 Mini grease bucket used with wire holder S15111. MORE...

85

S21255 Washer MORE...

106

Y-12835 SCREW-PHCP 6-32X1/4 TY-F JS500 MORE...

111

10390-E10 Genuine OEM Side Burner. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow).
Temporarily out of stock. Orders for this part will ship late May.

Note: Part 10390-E10 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10390-E10D
• OMC:10390-E10E

MORE...

113

10342-T12 Genuine OEM 21" wire for side burner or other applications. Both ends are female spade connector. MORE...
