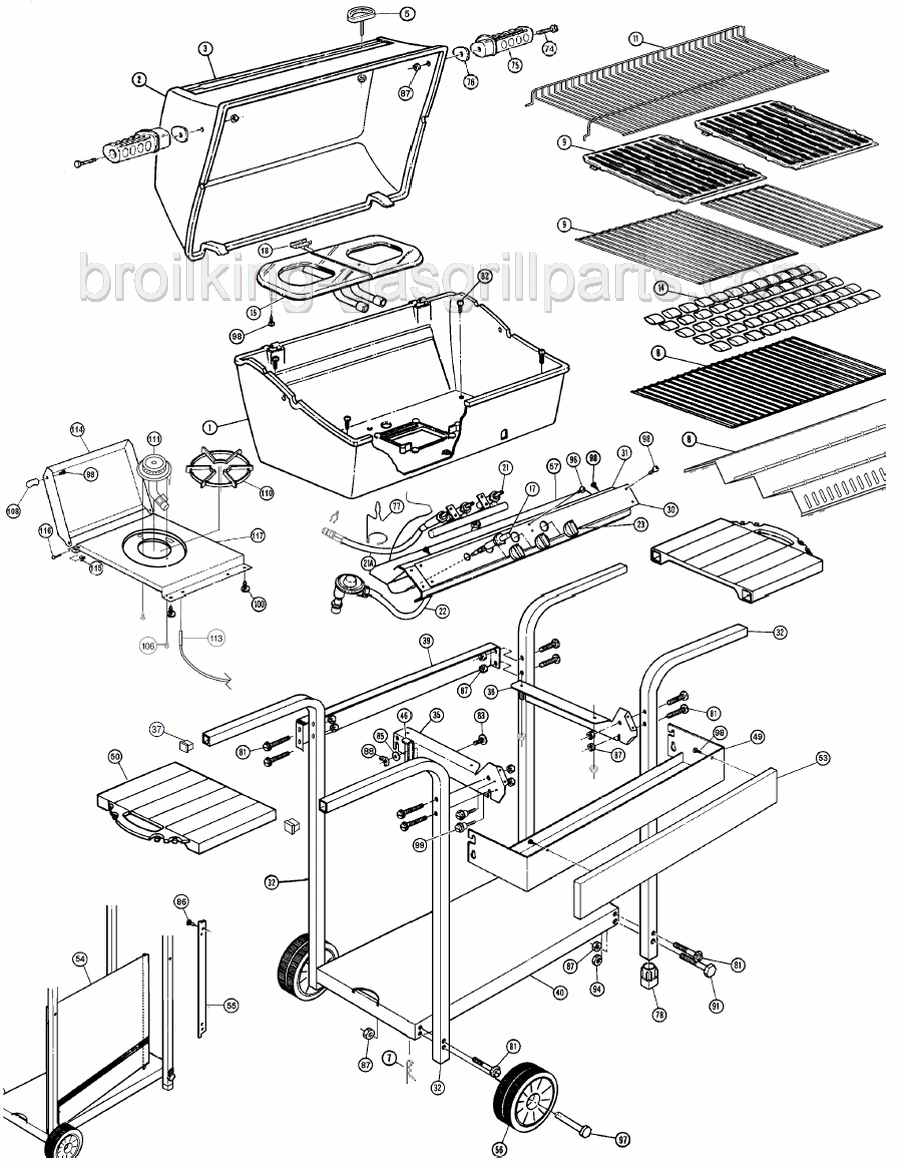

Grill model: 531-04

7

S21233 Hinge pin clip.

Note: Part S21233 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:S21232

MORE...

9

10225-T242 Genuine OEM one piece cooking grid for Porta-Chef portable grills. May fit others. Porcelain enameled steel, glossy finish. MORE...

11

10225-T247 Genuine OEM warming rack. Approximate measurements shown below:

• Front-to-back of rack itself: 7 9/16"
• Side-to-side of rack itself: 17"
• Length of rear mounting rod: 19 5/16"
• Width between front swing-away rods: 19 7/8" MORE...

14

CLA-AC0394 High quality, long lasting ceramic briquettes. 59 flat top pyramid-shaped briquettes per box. Placed 1/2" apart, 59 briquetes will cover about 368 square inches. This is an area roughly 15" x 24".

• Top quality product
• Each briquette measure 2" x 2"
• Self cleaning
• Great heat distibution, retains heat longer
• Can be used on all grills that use briquettes or lava rock
• Use a single layer (multiple layers can reduce temperatures)

NOTE: These high quality ceramic briquetes are available in 59 count, 70 count, and 90 count qantities.

• 59 briquetes covers an area apprimately 15" x 24"
• 70 briquetes covers an area apprimately 17" x 26"
• 90 briquetes covers an area apprimately 17" x 33"

MORE...

15

10390-T301 Genuine OEM stainless steel burner and venturi assembly.
Temporarily out of stock. Orders for this part will ship late May. MORE...

17

10342-21 Push button igniter. For single wire for grills with no side burner. Wires not included. Comes in black or grey as available from manufacturer.
Temporarily out of stock. Orders for this part will ship late May. MORE...

18

10342-T301 Genuine OEM collector box and electrode assembly. Includes:

• burner mounted box with mounting screw
• ceramic electrode and 17" wire with round connector and protective sleeve
• Use with burners 10390-T401 (14102) and 10390-T501 (14212) MORE...

22

80012 24" LP hose and regulator with QCC-1 connection.

• For use on "new style" QCC-1 tanks.
• Consists of hose part# 01000 and regulator part# 00920.
• Hose end with SAE 3/8" female flare fitting connects to grill. MORE...

?

HR-4B Type 1 LP Regulator with 22" Pressure Hose and 3/8" Female Flare Fitting.FITS: Up to 60,000 BTUs MORE...

23

10472-K431 Control knob large. Black with stainless steel BA strip. MORE...

31

10194-T401 CONTROL COVER 18 5/8 BLACK MORE...

56

10892-7G Genuine OEM 7" cart wheel with 3/8" axel hole. Mini hub cap is # 00400251, sold separately.

Note: Part 10892-7G is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10892-07
• OMC:10892-17
• OMC:10892-7
• OMC:10892-70

MORE...

74

Y-6616 Bolt hex head 1 1/2" length MORE...

76

10239-7 Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Note: Part 10239-7 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10239-6

MORE...

77

S15111 Stainless steel wire grease cup holder for mini bucket #S15112 which has been discontinued and replaced with mini bucket # 4673-FC. This wire holder can also be used with tin cans for easy disposal of grease. MORE...

78

S21346 Leg end cap. MORE...

85

S21255 Washer MORE...
