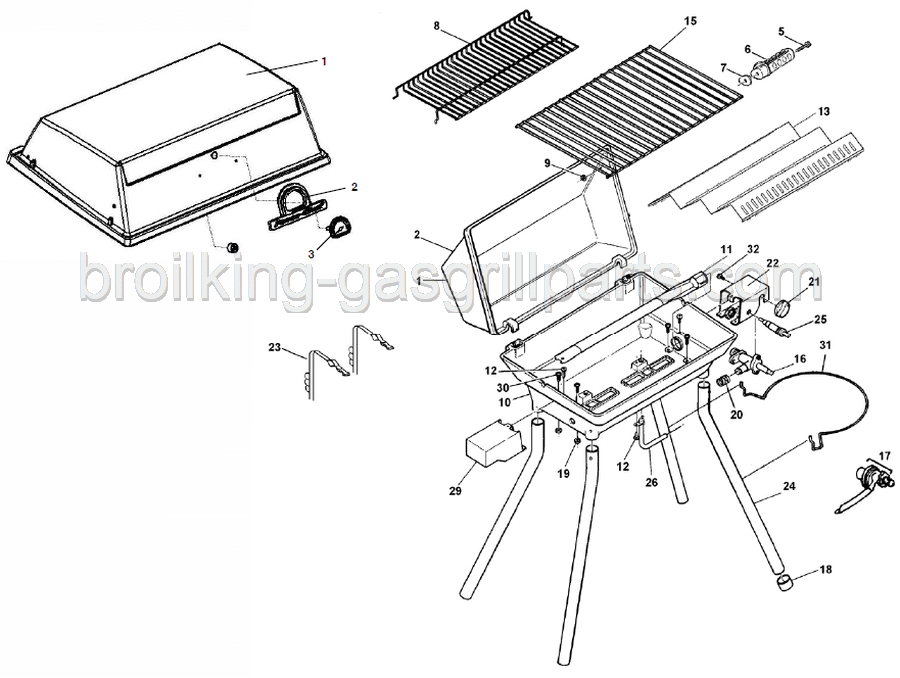

Grill model: 422-33 Porta-Chef

5

Y-6616 Bolt hex head 1 1/2" length MORE...

7

10239-7 Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Note: Part 10239-7 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10239-6

MORE...

8

10225-T247 Genuine OEM warming rack. Approximate measurements shown below:

• Front-to-back of rack itself: 7 9/16"
• Side-to-side of rack itself: 17"
• Length of rear mounting rod: 19 5/16"
• Width between front swing-away rods: 19 7/8" MORE...

11

10390-E21 Genuine OEM burner for Porta-Chef. Includes burner-mounted collector box with electrode and wire.
SPECIAL ORDER PART. This part is not in stock. Orders for this part may not ship for 4 to 10 weeks, depending on availablity and ship times from the manufacturer.

Note: Part 10390-E21 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10390-T20
• OMC:10390-T20E
• OMC:10390-T21
• OMC:10390-T21E

MORE...

13

10222-T225 Genuine OEM stainless steel Flav-R-Wave heat plate. MORE...

15

10225-T242 Genuine OEM one piece cooking grid for Porta-Chef portable grills. May fit others. Porcelain enameled steel, glossy finish. MORE...

16

10440-T20E Gas valve. MORE...

17

S13297 HOSE CONNECTOR BARB MORE...

17

S13299 HOSE CONNECTOR NUT 3/8 MORE...

21

10472-K431 Control knob large. Black with stainless steel BA strip. MORE...

23

10184-K17 Straps for Porta-Chef. (CARRY STRAP PORTABLE 2PC.) MORE...

24

10338-T201 Leg for Porta-Chef, black.
Also replaces part 10338-T20. Includes V-Clip part # Y-12659.

Note: Part 10338-T201 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10338-T20

MORE...

25

10342-21 Push button igniter. For single wire for grills with no side burner. Wires not included. Comes in black or grey as available from manufacturer.
Temporarily out of stock. Orders for this part will ship late May. MORE...

26

S15506 Genuine OEM electrode and female round end connector wire. MORE...

28

Y-12659 LEG INSERT V- CLIP PORTABLE USED ON LEG PART # 10338-T201 (DON'T KNOW IF IT FITS ON OTHER PART NUMBERS). MORE...

29

10194-T201 CONTROL COVER PORTABLE PTD MORE...
